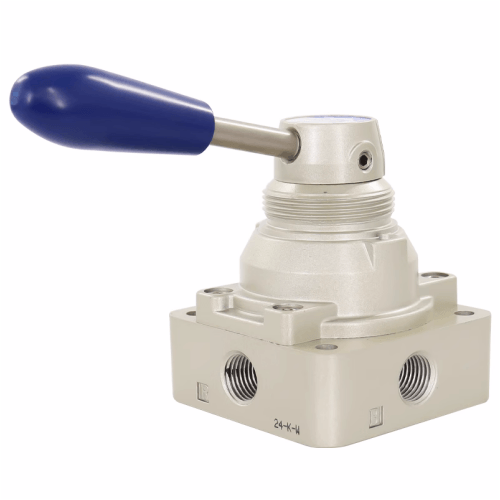

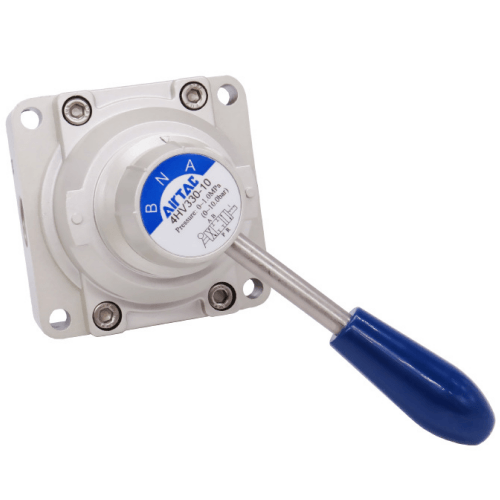

Airtac 4HV Manual Rotary Valve 4HV23008S
2、Large effective flow area ensures minimal pressure loss;
3、Dual installation options (panel mount with included nuts or bottom mount) for flexible configuration.
Category: Manual Rotary Valves | Brand: Airtac | Series: 4HV
AirTAC 4HV23008S Manual Override Valve Specifications
- Model: 4HV23008S
- Type: 3-position (P-A-B) manual override valve
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.2–1.0 MPa (29–145 psi)
- Max flow rate: 750 L/min (Cv=1.3)
- Manual operation torque: ≤1.5 N·m
- Body material: Anodized aluminum alloy
- Seal material: HNBR rubber (high nitrile)
- Temperature range: -10℃ to 80℃ (14°F to 176°F)
- Weight: 480g ±5% (1.06 lbs)
- Dimensions: 68mm(L) × 42mm(W) × 85mm(H) (2.68" × 1.65" × 3.35")
- Port thread depth: 12mm (0.47")
- Mounting pattern: ISO 15407-1 compliant
- Protection rating: IP54 (dust protected, water splashing)
Industrial-grade manual override valve with ergonomic rotary knob, designed for emergency operation or system debugging in automated pneumatic circuits. Features double-sealed bearings for smooth rotation and wear compensation design that maintains sealing integrity after 50,000+ cycles. Requires 5μm filtered lubricated air (ISO 8573-1 class 4).
- Production line emergency stop systems
- Robotic arm pneumatic circuit isolation
- Plastic injection molding machine manual controls
- CNC equipment air pressure regulation
- Hydraulic system pilot pressure override
Installation note:
Apply 2-3 drops of ISO VG32 turbine oil monthly to rotary shaft.
For vertical mounting, ensure exhaust port faces downward to prevent debris accumulation.
Torque limit for port connections: 12-15 N·m.
| Property | Property Value |
|---|---|
| sku | 4HV23008S |
| Position | 4-way, 3-position |
| Port Size | PT1/4 |
