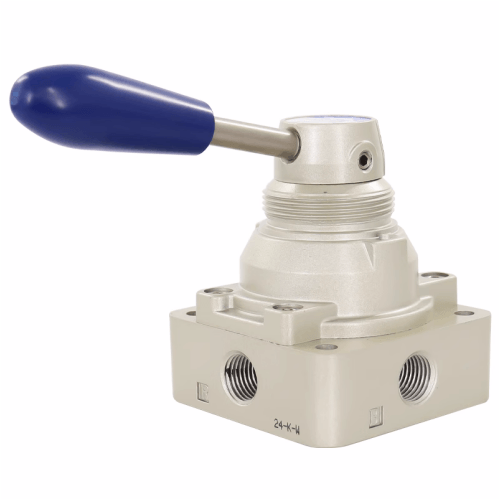

Airtac 4HV Manual Rotary Valve 4HV23008SL
2、Large effective flow area ensures minimal pressure loss;
3、Dual installation options (panel mount with included nuts or bottom mount) for flexible configuration.
Category: Manual Rotary Valves | Brand: Airtac | Series: 4HV
AirTAC 4HV23008SL Manual Rotary Valve Technical Details
- Model: 4HV23008SL
- Type: 4-way/3-position (L-type flow path)
- Port size: PT3/8 (G3/8 optional)
- Operating pressure: 0.2–1.0 MPa
- Operating temperature: -5℃ to 80℃
- Actuation: Manual rotary lever (90° rotation)
- Body material: Anodized aluminum alloy
- Seal material: HNBR (hydrogenated nitrile)
- Flow capacity: 1800 NL/min (at 0.5 MPa)
- Weight: 520g ±5%
- Dimensions: 78mm(L) × 48mm(W) × 65mm(H)
- Port thread depth: 12mm (all ports)
- Leakage: <0.1 cm³/min (under 0.5 MPa)
- Cycle life: ≥500,000 operations
Heavy-duty manual directional control valve with positive detent positioning, featuring a dust-resistant rotary mechanism. The chrome-plated shaft and precision-machined body ensure smooth operation in high particulate environments. Designed for systems requiring manual override or frequent directional changes without electrical control.
- Pneumatic press emergency stop systems
- Assembly line fixture clamping control
- Material handling equipment direction switching
- Test bench pneumatic circuit configuration
- Food processing machinery (oil-resistant version available)
Installation guidelines: Mount in accessible locations with lever rotation clearance ≥120°. Lubricate pivot point with ISO VG32 hydraulic oil quarterly. Avoid side-loading during operation to prevent shaft deformation.
- Detachable knob design for custom handle adaptation
- Bi-directional flow capability
- Transparent position indicator window
- Vibration-resistant detent mechanism
| Property | Property Value |
|---|---|
| sku | 4HV23008SL |
| Position | 4-way, 3-position |
| Port Size | PT1/4 |
