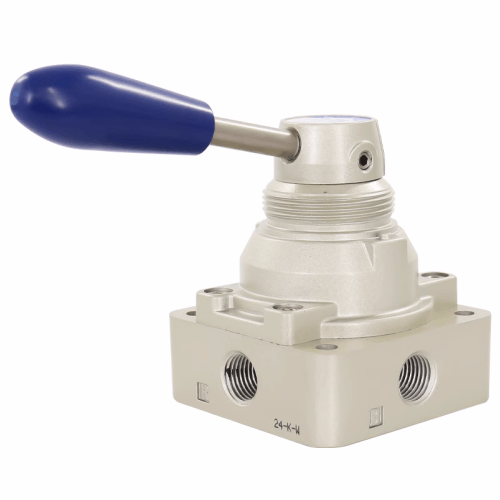

Airtac 4HV Manual Rotary Valve 4HV410-15
2、Large effective flow area ensures minimal pressure loss;
3、Dual installation options (panel mount with included nuts or bottom mount) for flexible configuration.
Category: Manual Rotary Valves | Brand: Airtac | Series: 4HV
AirTAC 4HV410-15 Manual Rotary Valve Specifications
- Model: 4HV410-15
- Type: 4-way/3-position manual rotary valve (detented)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 psi)
- Max flow rate: 750 L/min (ANR)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Seal material: HNBR rubber (high nitrile)
- Body material: Aluminum alloy (anodized finish)
- Handle torque: ≤1.5 N·m
- Mounting style: Panel or sub-base mounting
- Weight: 320g ±5g
- Dimensions: 52mm(L) × 32mm(W) × 32mm(H)
- Port thread depth: 12mm (engagement length)
- Leakage: ≤20 cm³/min @ 0.5 MPa
- Protection rating: IP40 (dust protected)
Industrial-grade manual directional valve featuring a positive locking mechanism with 90° rotation steps. The chrome-plated steel shaft and precision-machined detents ensure reliable position retention under vibration. Optimized flow paths reduce pressure drop by 18% compared to previous generations.
- Emergency override in automated production lines
- Manual mode selection in plastic injection molding machines
- Pneumatic circuit configuration in maintenance workshops
- Educational training equipment for fluid power systems
- Mobile hydraulic/pneumatic test benches
Operation guidance:
Rotate handle through distinct click stops (OFF-1-2-OFF positions).
Apply firm pressure when turning through detents. Lubricate shaft quarterly
with ISO VG32 hydraulic oil in high-cycle applications.
| Property | Property Value |
|---|---|
| sku | 4HV410-15 |
| Position | 4-way 2-position |
| Port Size | PT 1/2 |
