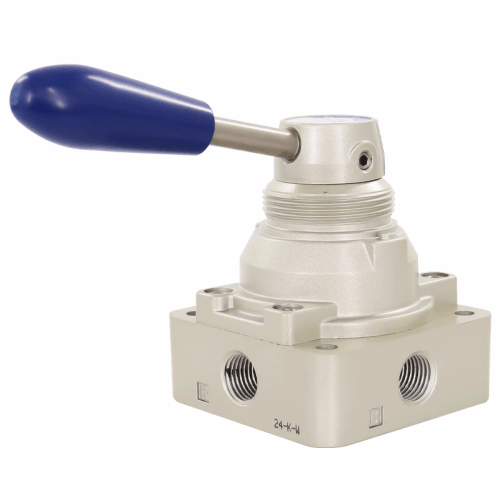

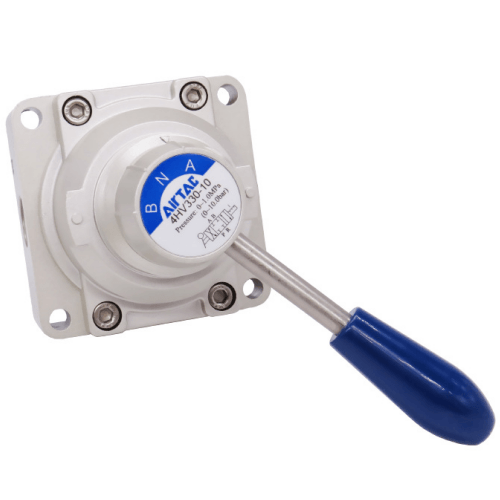

Airtac 4HV Manual Rotary Valve 4HV430-20
2、Large effective flow area ensures minimal pressure loss;
3、Dual installation options (panel mount with included nuts or bottom mount) for flexible configuration.
Category: Manual Rotary Valves | Brand: Airtac | Series: 4HV
AirTAC 4HV430-20 Manual Rotary Valve Technical Details
- Model: 4HV430-20 (4HV Series)
- Type: 4-port/3-position detent-type manual rotary valve
- Port configuration: P, A, B, R
- Port size: 1/4" NPT (G1/4 optional)
- Operating pressure: 0.2–1.0 MPa (29–145 psi)
- Max flow rate: 1,200 NL/min (Cv=1.8)
- Operating temperature: -5℃ to 60℃ (23℉ to 140℉)
- Body material: Anodized aluminum alloy
- Seal material: Nitrile rubber (NBR) with PTFE wear rings
- Actuation torque: ≤1.5 N·m
- Weight: 480g ±5% (1.06 lbs)
- Dimensions: 78mm(L) × 42mm(W) × 45mm(H) (3.07" × 1.65" × 1.77")
- Mounting: Panel mount with M5 threaded holes
- Position indication: Colored sector window with engraved markings
Industrial-grade manual directional control valve featuring positive center detent positioning and visual status indication. The hardened stainless steel shaft and dual O-ring sealing ensure leak-free operation in high-cycling applications. Designed for panel integration with front-facing port connections.
- Pneumatic system manual override control
- Production line emergency stop circuits
- Machine tool clamping position selection
- Material handling system diverter valves
- Hydraulic system pilot controls (oil-resistant version available)
Installation guidelines:
Apply thread sealant to port connections (tapered threads only).
For horizontal mounting, ensure exhaust ports face downward to prevent
debris ingress. Lubricate shaft quarterly with ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | 4HV430-20 |
| Position | 4-way, 3-position |
| Port Size | BSPT 3/4 |
