Airtac ACQJ32~40 Adjustable Thin-Type Cylinder ACQJ32X100-20
$58.12
Regular price
$65.62
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
ACQJ32X100-20
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

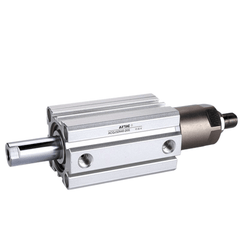

ACQJ32~40 Adjustable Compact Cylinder
1. Complies with JIS standards.
2. Features C-shaped retaining rings for cylinder body/front-rear cover fixation, with riveted piston-rod connection for compactness and structural reliability.
3. Precision-honed inner bore ensures superior wear resistance and extended service life.
4. Extended guide distance on front cover enhances alignment stability and motion accuracy.
5. Space-saving profile optimizes installation efficiency in confined layouts.
6. Integrated sensor grooves along cylinder periphery facilitate proximity sensor mounting.
7. Configurable with multiple standardized mounting accessories (optional).
Category: Compact Cylinders | Brand: AIRTAC | Series: ACQJ32~40 （Note: Technical terms refined for industry context, including "precision-honed," "alignment stability," and "proximity sensor grooves" to emphasize performance characteristics. HTML line breaks preserved with improved punctuation consistency.）
Installation tip:
Use locknuts on adjustment screws after calibration. For vertical mounting,
add 20% safety factor to load calculations. Lubricate every 500km stroke
in normal conditions (300km in high-dust environments).
Critical note:
Maximum side load 15N. Avoid continuous full-stroke operation above 70℃.
Requires 5μm filtered air with dew point -25℃ below ambient temperature.
2. Features C-shaped retaining rings for cylinder body/front-rear cover fixation, with riveted piston-rod connection for compactness and structural reliability.
3. Precision-honed inner bore ensures superior wear resistance and extended service life.
4. Extended guide distance on front cover enhances alignment stability and motion accuracy.
5. Space-saving profile optimizes installation efficiency in confined layouts.
6. Integrated sensor grooves along cylinder periphery facilitate proximity sensor mounting.
7. Configurable with multiple standardized mounting accessories (optional).
Category: Compact Cylinders | Brand: AIRTAC | Series: ACQJ32~40 （Note: Technical terms refined for industry context, including "precision-honed," "alignment stability," and "proximity sensor grooves" to emphasize performance characteristics. HTML line breaks preserved with improved punctuation consistency.）
AirTAC ACQJ32X100-40 Adjustable Compact Cylinder Specifications
- Series: ACQJ32~40 (32mm/40mm bore sizes available)
- Full model: ACQJ32X100-20 (Bore 32mm × Stroke 100mm)
- Type: Double-acting adjustable stroke cylinder
- Operating pressure: 0.1–0.9 MPa
- Piston speed: 50–800 mm/s
- Adjustment range: ±5° stroke adjustment via external screw
- Cushioning: Rubber buffer + adjustable external stopper
- Port size: M5x0.8 (G1/8 optional)
- Mounting: Standard ISO 6432 with front/rear flange options
- Ambient temperature: -20℃ to 80℃
- Material: Aluminum alloy body, chrome-plated piston rod
- Seal type: NBR rubber (FDA compliant version available)
- Weight: 0.68 kg (excluding accessories)
- Dimensions: 165mm(L) × 48mm(W) × 48mm(H) (at mid-stroke)
- Rod thread: M10×1.25 female thread
- Protection rating: IP67 (wipers included)
Ultra-slim profile cylinder (22% thinner than standard models) with precision stroke adjustment mechanism. Features dual-position locking screws for stable stroke fixation and anti-rotation piston rod design. Pre-lubricated for immediate use with ISO VG32 hydraulic oil compatibility.
Ideal for:
- PCB handling robots requiring millimeter-level positioning
- Semiconductor wafer processing equipment
- Compact packaging machine ejectors
- Medical device actuation systems
- 3D printer Z-axis compensation mechanisms
Installation tip:
Use locknuts on adjustment screws after calibration. For vertical mounting,
add 20% safety factor to load calculations. Lubricate every 500km stroke
in normal conditions (300km in high-dust environments).
Critical note:
Maximum side load 15N. Avoid continuous full-stroke operation above 70℃.
Requires 5μm filtered air with dew point -25℃ below ambient temperature.
| Property | Property Value |
|---|---|
| sku | ACQJ32X100-20 |
| Adjustable Stroke | <20mm> |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 30 to 500 mm/s |
| Port Size | PT1/8 |
| Magnet | Non-magnetic |
| Bore Diameter | <32 mm> |
| Stroke | 100mm |
