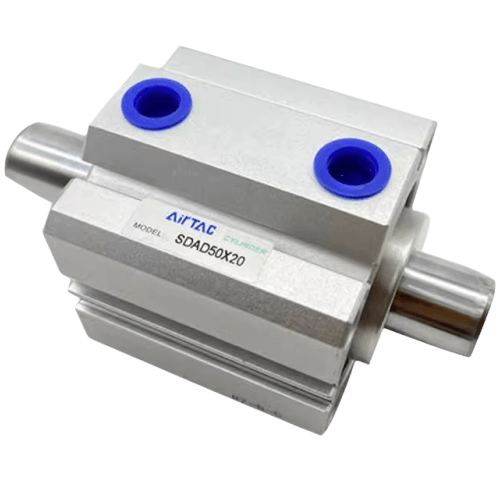

AirTAC SDAD Series · Double-Rod Compact Cylinder

Airtac B01-SDAD Dedicated Cylinder B01-SDAD40X40

The AirTAC B01-SDAD Dedicated Cylinder B01-SDAD40X40 is a genuine double-acting COMPACT cylinder with a piston rod out BOTH ends (Ø40mm bore, 40mm stroke). The through-rod resists twisting and lets you drive a tool on one end while a switch or dog reads position on the other — with identical force in both directions.

  • BoreØ40 mm
  • Stroke40 mm
  • Port sizePT1/8
  • Acting typeDouble acting, double rod
  • Rod threadM8×1.25 (F) / M14×1.5 (B)
  • CushionFixed NBR bumper (both ends)
$53.73 $61.23Save 12% Standard model — usually dispatched in 3-5 days
Request a Quote
  • No minimum order. A single piece can be ordered.
  • Shipped from our own warehouse: most standard models dispatch in 3–5 days; custom and non-standard models take 8–10 business days. Transit time after that depends on the destination.
verified Genuine AirTAC workspace_premium 1-year warranty bolt Reply in 7 h

About the Airtac B01-SDAD Dedicated Cylinder B01-SDAD40X40

The AirTAC B01-SDAD40X40 is a compact double-acting cylinder featuring a piston rod exiting both ends of its riveted body. The B01- prefix designates this as an application-dedicated, customer-specified variant of the standard SDAD40X40, retaining the exact same mechanical specifications. Because a rod occupies both chambers, the annular area is identical on extend and retract, yielding equal push and pull forces of 527.8 N at 0.5 MPa.

This symmetric force is a major advantage for balanced loads, while the through-rod geometry inherently resists twisting. The short body profile saves axial mounting depth where larger profile cylinders cannot fit. End-of-stroke deceleration is handled by a fixed NBR bumper at each end, which absorbs shock but is not an adjustable air cushion. Note that this specific SKU lacks a piston magnet and cannot support position sensing.

Airtac B01-SDAD Dedicated Cylinder B01-SDAD40X40 Technical Specifications

ModelAirtac B01-SDAD Dedicated Cylinder B01-SDAD40X40
SeriesSDAD compact double-rod cylinder
Bore sizeØ40 mm
Stroke40 mm
Acting typeDouble acting, rod both ends
Port sizePT1/8
Rod end threadM8×1.25 female / M14×1.5 male (B)
FluidAir (filtered by 40µm element)
Operating pressure0.15 – 1.0 MPa
Proof pressure1.5 MPa
Temperature-20 to +70 °C
Speed range30 – 500 mm/s
CushionFixed NBR bumper (both ends)
Max standard strokeUp to 120 mm

Because a rod occupies both cylinder chambers, the effective area — and therefore the force — is identical in both directions. Specifications follow the official AirTAC SDAD datasheet.

Theoretical Output Force (Ø40mm)

PressureForce (both directions)
0.5 MPa528 N
0.7 MPa739 N
Max (@1.0 MPa)108 kgf

Force uses the annular (rod-side) area on both strokes, so extend and retract match. Actual usable force is lower than theoretical due to friction. Size with a safety margin.

Model Code: Airtac B01-SDAD Dedicated Cylinder B01-SDAD40X40

SDADCompact double-acting cylinder, rod out both ends.
40Bore size in mm.
×40Stroke length in mm.
SBuilt-in magnet for magnetic-switch sensing (omit = none).
BMale-thread piston rods (omit = female thread).

Thread: PT standard. Related SDA-family variants: SDA (single rod), SSA/STA (single acting), SDAJ (adjustable stroke), SDAT (duplex), SDAW (duplex-end).

Where the Airtac B01-SDAD Dedicated Cylinder B01-SDAD40X40 Is Used

sync_alt

Symmetric Transfer Jaws

Drives gripper jaws requiring identical 527.8 N clamping pressure on both the extend and retract strokes, ensuring parts are not crushed or dropped during transfer.

vertical_align_center

Vertical Lift Stations

Raises and lowers a 26.9 kg payload using the through-rod design to prevent platform twist, maintaining alignment without external linear guides.

package_2

Dual-End Flap Folding

Mounts a folding blade on one rod end and a cam tracker on the opposite end, synchronizing carton sealing actions within a tight 40mm stroke footprint.

Is the Airtac B01-SDAD Dedicated Cylinder B01-SDAD40X40 the Right Cylinder?

When sizing this 40mm bore unit, compare it directly with its neighbors. Stepping down to the SDAD32 provides 345.6 N at 0.5 MPa, whereas this B01-SDAD40X40 outputs 527.8 N. Moving up to the SDAD50 increases output to 824.7 N.

The through-rod design allows you to mount a work tool on one end and a dog or switch bracket on the opposite end without twisting. This SKU has female M8x1.25 rod-end threads, a PT1/8 port, and no magnet. Remember that a standard cylinder does not hold position if air pressure drops or the valve centers; the piston will drift. For load holding without live pressure, install an external rod lock or a pilot-operated check valve.

Quick checklist

  • ✓ Need equal force both directions?
  • ✓ Anti-rotation / dual-end mounting?
  • ✓ Space for a rod that exits both ends
  • ✓ Port/thread type (PT)
  • ✓ Magnet (S) for sensors?
Ask an Engineer

Installation & Maintenance Notes

  • check Use clean air filtered to 40µm or finer.
  • check Keep within 0.15 – 1.0 MPa operating pressure.
  • check Leave clearance for the rod exiting both ends.
  • check Avoid side load on either rod end.
  • check Front/rear covers are riveted — do not dismantle.
  • check Installation by qualified personnel per AirTAC docs.

Airtac B01-SDAD Dedicated Cylinder B01-SDAD40X40 FAQ

Because the double-rod design creates equal annular areas, force is identical in both directions: 527.8 N at 0.5 MPa and 738.9 N at 0.7 MPa. The theoretical maximum is 108 kgf at 1.0 MPa. Operating pressure ranges from 0.15 to 1.0 MPa.

The B01- prefix indicates an application-dedicated, customer-specified build of the standard SDAD40X40, meaning it is mechanically identical to the base model. This specific SKU does not have a piston magnet, so it cannot accept reed or electronic switches. You would need the -S variant for position sensing.
