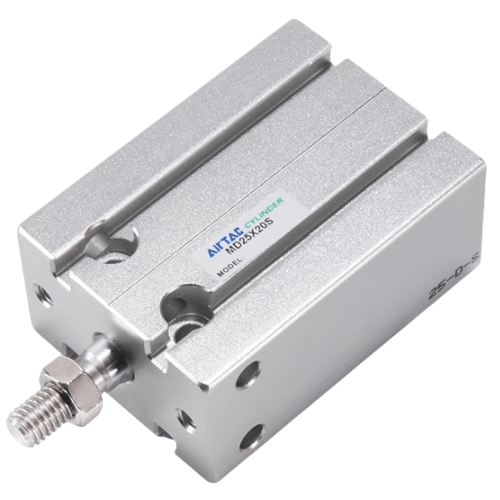

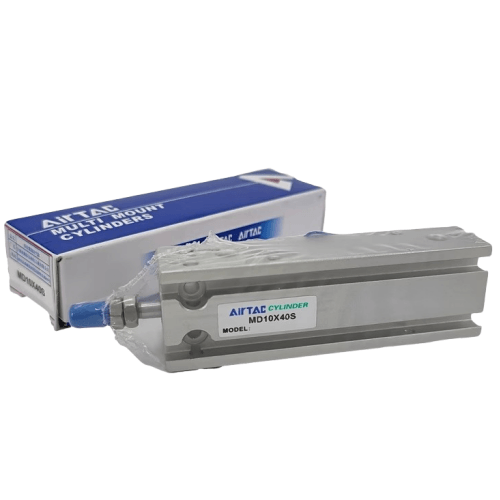

The AirTAC B52-MD Copper-Free Multi-Position Locking Cylinder B52-MD32X50S is a genuine MD multi-mount cylinder (double acting), 2 mm bore. Its compact square body fixes from six directions and mounts side by side to save space. A bumper cushions the impact.
The AirTAC MD series is a compact square-body multi-mount cylinder that fixes from six directions - front, back, left, right, top and bottom - and mounts side by side to save space. Magnetic-switch slots run around the body, and the guided design keeps position precision high without added lubricant. This 32 mm bore, 50 mm stroke double acting model delivers a theoretical 402.1 N on the push side at 0.5 MPa, runs on air filtered to 40 um at 0.15-1.0 MPa (22-145 psi), and its cushion is a bumper that softens each end of stroke.
This is a genuine AirTAC part. MD is the standard multi-mount family, where rod rotation is permitted; the MK family adds a no-rotating plate when the rod must stay square. The trailing S in MD32X50S means this unit carries a magnet for switch detection, and the thread is PT (G is available as an option). Body dimensions vary with stroke, so ask us and we will confirm sizing and details from the AirTAC datasheet.
| Model | Airtac B52-MD Copper-Free Multi-Position Locking Cylinder B52-MD32X50S |
|---|---|
| Type | Multi-mount cylinder, double acting |
| Series | MD (standard) |
| Bore | 2 mm |
| Port size | M5x0.8 (PT thread) |
| Magnet | With magnet (S) |
| Fluid | Air, filtered to 40 um |
|---|---|
| Operating pressure | 0.15 - 1.0 MPa (22 - 145 psi) |
| Proof pressure | 1.5 MPa (215 psi) |
| Temperature | -20 to 70 C |
| Speed range | 30 - 500 mm/s |
| Cushion | Bumper |
| Mounting | Fix from 6 directions; mountable side by side |
Specifications follow the official AirTAC MD/MK multi-mount data. The front cover and piston are short, so avoid an over-long stroke. An optional high-temperature seal material extends the range to 0 to 150 C. Overall dimensions vary per stroke and allowable side-load is published as curves — ask us and we confirm from the datasheet.
Pick the 32 mm bore when you need the strongest push in this series: 402.1 N theoretical at 0.5 MPa on the push side, against 345.6 N on the pull side. MD allows rod rotation, while MK prevents it; acting options are double, single push (MSD), single pull (MTD), double rod (MDD) and adjustable stroke (MDJ). Bore 32 strokes run up to 60 mm, so 50 mm sits inside the table - still, keep strokes as short as the job allows, because a long stroke on a short cover raises side-load risk; route side-load questions to us. Add S for the magnet and choose PT (default) or G threads.
Extend across a conveyor lane to stop and hold cartons between cycles. The 402.1 N push handles light gating and the bumper cushion takes the shock of each stop.
Clamp small parts in a machining or assembly fixture. The square body mounts side by side, so several clamps fit a tight fixture footprint and can be fixed from the top, side or bottom.
Advance a jig or pallet to the next station on an indexing table. Six-direction fixing lets the cylinder bolt beneath or beside the table where a tie-rod body would not fit.
S is the magnet option: this cylinder is built with a magnet so magnetic switches can detect piston position. The same model without the S ships without a magnet. Thread is PT unless the code ends in G.
The square body fixes from front, back, left, right, top or bottom, so cylinders can be bolted side by side or into tight fixtures without extra brackets. Body dimensions depend on the stroke, so confirm them from the datasheet before designing the mounting.
