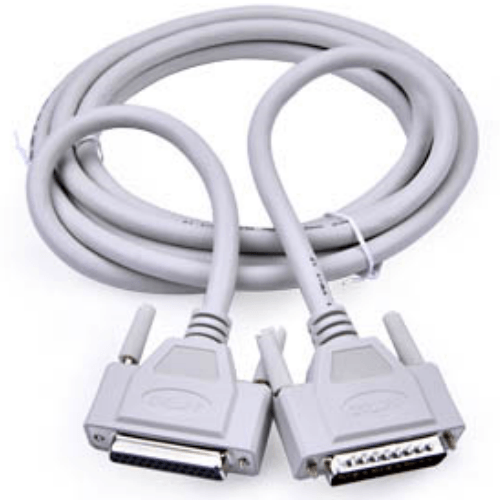

Airtac F-DSUB Cable F-DSUB25F500
Category: Solenoid Valve Coils | Brand: AirTAC | Series: F-DSUB
AirTAC F-DSUB25F500 D-Sub Cable Assembly Specifications
- Model: F-DSUB25F500
- Connector type: High-density D-Subminiature (D-SUB)
- Interface standard: MIL-DTL-24308 compliant
- Pin configuration: 25-position female connector (DB25F)
- Cable length: 500mm ±2% (custom lengths available)
- Conductor: 28 AWG stranded tinned copper (7/0.127mm)
- Insulation: Dual-layer PVC (0.8mm thickness)
- Shielding: Aluminum-Mylar foil + 85% tinned copper braid
- Jacket: Oil-resistant PUR (polyurethane) outer sheath
- Voltage rating: 300V AC/DC max
- Current capacity: 1A per contact
- Temperature range: -40℃ to 105℃ (operational)
- Bend radius: 6× cable diameter minimum
- Contact resistance: ≤30mΩ initial
- Insulation resistance: ≥1000MΩ at 500VDC
- Weight: 280g ±5% (including connectors)
- Dimensions: 500mm(L) × 25mm(W cable diameter) × 38mm(H connector)
High-reliability shielded cable assembly with gold-plated contacts (50μ" thickness) ensuring stable signal transmission in EMI-sensitive environments. Features strain relief boots and color-coded thumbscrews (natural aluminum finish) for quick visual identification. Compatible with industrial Ethernet protocols including PROFINET and EtherCAT.
- PLC-to-HMI communication interfaces
- CNC machine tool I/O connections
- Robotic arm control signal transmission
- Industrial PC peripheral connectivity
- Test bench measurement systems
Installation guidelines:
Maintain minimum 150mm straight cable segment before/after connectors.
Use torque-controlled screwdriver (0.4N·m max) for connector fastening.
Avoid parallel routing with power cables (≥50mm separation recommended).
