Airtac F-DSUB Cable F-DSUB37F200
$39.51
Regular price
$47.01
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-DSUB37F200
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Cable assemblies, including fiber optic cables and electrical cables, serve a wide range of critical functions in industrial applications. These components are primarily utilized for control systems installation, equipment interconnection, power transmission, and signal transmission, constituting indispensable components in modern industrial and daily applications. Due to their current-carrying nature, proper installation practices must be strictly followed to ensure operational safety and reliability.
Category: Solenoid Valve Coils | Brand: AirTAC | Series: F-DSUB
Installation note:
Maintain minimum 50mm straight cable section before/after connectors.
Use shielded cable glands when passing through metal panels.
Maximum mating cycles: 500 (with proper alignment).
Category: Solenoid Valve Coils | Brand: AirTAC | Series: F-DSUB

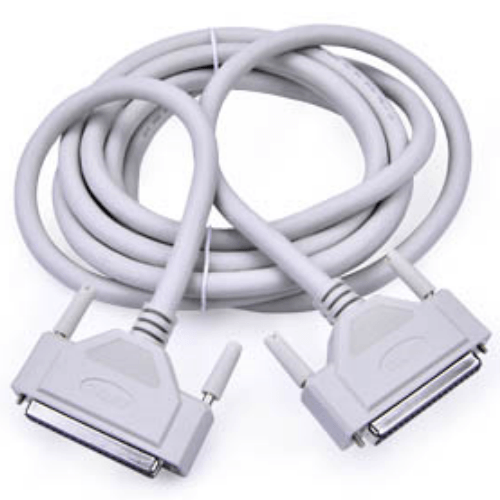

AirTAC F-DSUB37F200 D-Sub Cable Specifications
- Model: F-DSUB37F200
- Type: 37-pin D-Subminiature shielded signal cable
- Connector gender: Female (socket)
- Cable length: 2000mm ±10mm (2 meters)
- Wire gauge: 28 AWG stranded copper
- Conductor material: Tin-plated copper
- Insulation material: PVC (oil-resistant grade)
- Shielding: Dual-layer (aluminum foil + 85% coverage tinned copper braid)
- Voltage rating: 30V DC max
- Current rating: 2A per contact
- Contact resistance: ≤30mΩ
- Insulation resistance: ≥100MΩ at 500V DC
- Temperature range: -25℃ to +80℃
- Weight: 120g ±10g (including connectors)
- Connector dimensions: 60mm(L) × 37mm(W) × 15mm(H)
- Cable diameter: 5.0mm ±0.3mm
- Bend radius: ≥25mm (permanent installation)
High-density shielded cable assembly with gold-plated contacts (0.8μm thickness) for reliable signal transmission in EMI-sensitive environments. Features color-coded wire numbering and strain relief boots. Compatible with IEC 60807-2 standard D-sub configurations.
Typical Applications:
- PLC-to-I/O module communication in factory automation
- Servo motor encoder feedback systems
- Pneumatic valve manifold signal distribution
- Test bench measurement equipment interfaces
- Robotic arm control signal transmission
Installation note:
Maintain minimum 50mm straight cable section before/after connectors.
Use shielded cable glands when passing through metal panels.
Maximum mating cycles: 500 (with proper alignment).
| Property | Property Value |
|---|---|
| sku | F-DSUB37F200 |
