Airtac F-DSUB Cable F-DSUB37F500
Category: Solenoid Valve Coils | Brand: AirTAC | Series: F-DSUB

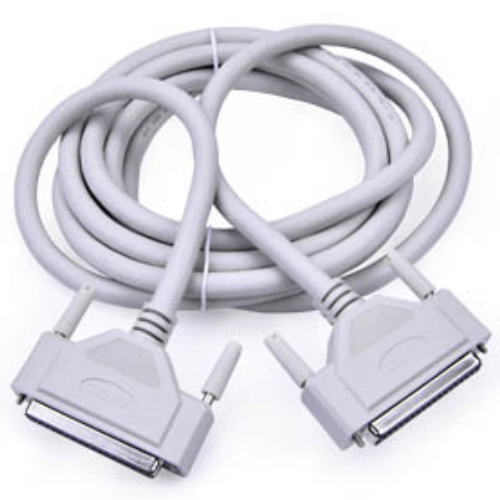

AirTAC F-DSUB37F500 D-Subminiature Cable Specifications
- Model: F-DSUB37F500
- Type: 37-pin female D-sub cable assembly
- Connector standard: IEC 60807-3 compliant
- Cable length: 500mm ±10mm
- Conductor material: Oxygen-free copper (28 AWG)
- Insulation: PVC compound (UL 1061 approved)
- Shielding: Dual-layer (aluminum foil + 85% tinned copper braid)
- Jacket material: Flexible PVC (OD: 7.2mm)
- Voltage rating: 300V AC/DC max
- Current capacity: 1A per contact
- Temperature range: -40℃ to 80℃
- Contact resistance: ≤30mΩ
- Insulation resistance: ≥1000MΩ at 500VDC
- Bend radius: ≥5× cable diameter
- Mating cycles: ≥500 insertions
- Weight: 280g ±15g
- Dimensions: 500mm(L) × 25mm(W connector) × 15mm(H connector)
- Flammability rating: UL VW-1
- EMC compliance: EN 61000-6-2/6-4
High-density shielded cable assembly with gold-plated contacts (0.76μm thickness) ensuring reliable signal transmission in electrically noisy environments. Features strain relief boots and thumb screws for secure connections. The tin-plated copper braid provides 360° EMI/RFI protection with ≥65dB shielding effectiveness up to 1GHz.
- Industrial PC to CNC controller interfacing
- Test equipment data acquisition systems
- Robotic arm control signal transmission
- Medical imaging device interconnections
- Avionics test bench wiring
Installation guidelines:
Maintain minimum 50mm straight section before cable bend.
Use torque-controlled screwdriver (0.4-0.6N·m) for connector fastening.
Avoid parallel routing with power cables (>100mm separation recommended).
