AirTAC SDAD Series · Double-Rod Compact Cylinder

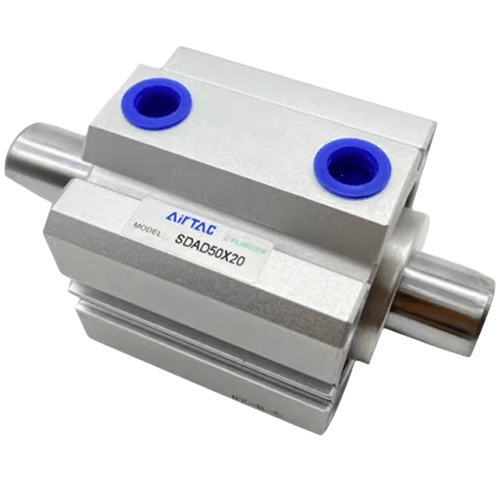

Airtac B01-SDAD Dedicated Cylinder B01-SDAD32X20

The AirTAC B01-SDAD Dedicated Cylinder B01-SDAD32X20 is a genuine double-acting COMPACT cylinder with a piston rod out BOTH ends (Ø32mm bore, 20mm stroke). The through-rod resists twisting and lets you drive a tool on one end while a switch or dog reads position on the other — with identical force in both directions.

  • BoreØ32 mm
  • Stroke20 mm
  • Port sizePT1/8
  • Acting typeDouble acting, double rod
  • Rod threadM6×1.0 (F) / M10×1.25 (B)
  • CushionFixed NBR bumper (both ends)
$40.70 $48.20Save 15% Standard model — usually dispatched in 3-5 days
Request a Quote
  • No minimum order. A single piece can be ordered.
  • Shipped from our own warehouse: most standard models dispatch in 3–5 days; custom and non-standard models take 8–10 business days. Transit time after that depends on the destination.
verified Genuine AirTAC workspace_premium 1-year warranty bolt Reply in 7 h

About the Airtac B01-SDAD Dedicated Cylinder B01-SDAD32X20

The AirTAC B01-SDAD32X20 is a compact double-acting cylinder featuring a 32 mm bore and 20 mm stroke. The leading B01- prefix designates this as an application-dedicated customer-specified variant, mechanically identical to the standard SDAD32X20. A piston rod exits both ends of the riveted body, creating equal annular areas. This geometry yields identical push and pull forces of 345.6 N at 0.5 MPa, ideal for symmetric loads.

The through-rod design inherently resists twisting, providing stable guidance for external tooling. Its short body profile saves axial mounting depth in tight fixtures. End-of-stroke deceleration relies on a fixed NBR bumper rather than an adjustable air cushion. This specific SKU lacks a piston magnet, so it cannot host reed or electronic switches without upgrading to the S option.

Airtac B01-SDAD Dedicated Cylinder B01-SDAD32X20 Technical Specifications

ModelAirtac B01-SDAD Dedicated Cylinder B01-SDAD32X20
SeriesSDAD compact double-rod cylinder
Bore sizeØ32 mm
Stroke20 mm
Acting typeDouble acting, rod both ends
Port sizePT1/8
Rod end threadM6×1.0 female / M10×1.25 male (B)
FluidAir (filtered by 40µm element)
Operating pressure0.15 – 1.0 MPa
Proof pressure1.5 MPa
Temperature-20 to +70 °C
Speed range30 – 500 mm/s
CushionFixed NBR bumper (both ends)
Max standard strokeUp to 120 mm

Because a rod occupies both cylinder chambers, the effective area — and therefore the force — is identical in both directions. Specifications follow the official AirTAC SDAD datasheet.

Theoretical Output Force (Ø32mm)

PressureForce (both directions)
0.5 MPa346 N
0.7 MPa484 N
Max (@1.0 MPa)70 kgf

Force uses the annular (rod-side) area on both strokes, so extend and retract match. Actual usable force is lower than theoretical due to friction. Size with a safety margin.

Model Code: Airtac B01-SDAD Dedicated Cylinder B01-SDAD32X20

SDADCompact double-acting cylinder, rod out both ends.
32Bore size in mm.
×20Stroke length in mm.
SBuilt-in magnet for magnetic-switch sensing (omit = none).
BMale-thread piston rods (omit = female thread).

Thread: PT standard. Related SDA-family variants: SDA (single rod), SSA/STA (single acting), SDAJ (adjustable stroke), SDAT (duplex), SDAW (duplex-end).

Where the Airtac B01-SDAD Dedicated Cylinder B01-SDAD32X20 Is Used

precision_manufacturing

Gripper Actuation

Drives a symmetrical gripping jaw with 345.6 N of equal force in both directions, preventing twist during high-speed pick and place.

conveyor_belt

Transfer Diverters

Uses the through-rod to push a diverting gate while the opposite end mounts a mechanical dog for physical track triggering.

Is the Airtac B01-SDAD Dedicated Cylinder B01-SDAD32X20 the Right Cylinder?

When sizing this unit, verify if the 345.6 N output at 0.5 MPa fits your requirement. Stepping down to the SDAD25 provides 206.2 N, while stepping up to the SDAD40 yields 527.8 N. This B01-SDAD32X20 configuration uses a PT1/8 port, a 12 mm rod diameter, and female M6x1.0 rod-end threads on both ends.

The dual-end shaft allows driving a tool on one side while mounting a dog on the opposite end. Remember that a standard cylinder drifts when air pressure is lost or the valve centers; the NBR bumper only decelerates near stroke end and never acts as a lock. For load holding without live pressure, integrate an external rod lock or pilot-operated check valve.

Quick checklist

  • ✓ Need equal force both directions?
  • ✓ Anti-rotation / dual-end mounting?
  • ✓ Space for a rod that exits both ends
  • ✓ Port/thread type (PT)
  • ✓ Magnet (S) for sensors?
Ask an Engineer

Installation & Maintenance Notes

  • check Use clean air filtered to 40µm or finer.
  • check Keep within 0.15 – 1.0 MPa operating pressure.
  • check Leave clearance for the rod exiting both ends.
  • check Avoid side load on either rod end.
  • check Front/rear covers are riveted — do not dismantle.
  • check Installation by qualified personnel per AirTAC docs.

Airtac B01-SDAD Dedicated Cylinder B01-SDAD32X20 FAQ

Because the double rod creates equal annular areas, push and pull forces are identical: 345.6 N at 0.5 MPa and 483.8 N at 0.7 MPa. The theoretical maximum is 70 kgf at 1.0 MPa. Operating pressure ranges from 0.15 to 1.0 MPa.

The B01- prefix marks this as an application-dedicated customer-specified variant of the SDAD32X20, sharing all physical specs with the base model. This specific SKU lacks a piston magnet and cannot host reed or electronic switches; you must select the S option variant for sensing.
