AirTAC SDAD Series · Double-Rod Compact Cylinder

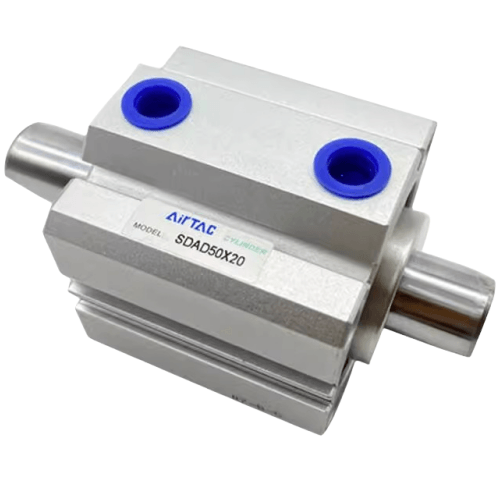

Airtac B01-SDAD Dedicated Cylinder B01-SDAD32X30

The AirTAC B01-SDAD Dedicated Cylinder B01-SDAD32X30 is a genuine double-acting COMPACT cylinder with a piston rod out BOTH ends (Ø32mm bore, 30mm stroke). The through-rod resists twisting and lets you drive a tool on one end while a switch or dog reads position on the other — with identical force in both directions.

  • BoreØ32 mm
  • Stroke30 mm
  • Port sizePT1/8
  • Acting typeDouble acting, double rod
  • Rod threadM6×1.0 (F) / M10×1.25 (B)
  • CushionFixed NBR bumper (both ends)
$42.77 $50.27Save 14% Standard model — usually dispatched in 3-5 days
Request a Quote
  • No minimum order. A single piece can be ordered.
  • Shipped from our own warehouse: most standard models dispatch in 3–5 days; custom and non-standard models take 8–10 business days. Transit time after that depends on the destination.
verified Genuine AirTAC workspace_premium 1-year warranty bolt Reply in 7 h

About the Airtac B01-SDAD Dedicated Cylinder B01-SDAD32X30

The AirTAC B01-SDAD32X30 is a compact double-acting cylinder featuring a through-rod that exits both ends of the riveted body. The B01- prefix designates this as an application-dedicated, customer-specified variant of the standard SDAD32X30, meaning it shares the exact same mechanical specifications while serving a specialized industry need. Because the rod occupies both chambers, the annular piston area is identical in both directions, yielding equal push and pull forces of 345.6 N at 0.5 MPa.

This symmetric force output is a major advantage for balanced loads. The through-rod geometry inherently resists twisting, allowing you to mount a work tool on one end while utilizing the opposite end for a dog or secondary mechanism. To absorb end-of-stroke kinetic energy, the cylinder relies on a fixed NBR bumper rather than an adjustable air cushion. Operating speeds span 30-500 mm/s within a temperature range of -20 to +70 C.

Airtac B01-SDAD Dedicated Cylinder B01-SDAD32X30 Technical Specifications

ModelAirtac B01-SDAD Dedicated Cylinder B01-SDAD32X30
SeriesSDAD compact double-rod cylinder
Bore sizeØ32 mm
Stroke30 mm
Acting typeDouble acting, rod both ends
Port sizePT1/8
Rod end threadM6×1.0 female / M10×1.25 male (B)
FluidAir (filtered by 40µm element)
Operating pressure0.15 – 1.0 MPa
Proof pressure1.5 MPa
Temperature-20 to +70 °C
Speed range30 – 500 mm/s
CushionFixed NBR bumper (both ends)
Max standard strokeUp to 120 mm

Because a rod occupies both cylinder chambers, the effective area — and therefore the force — is identical in both directions. Specifications follow the official AirTAC SDAD datasheet.

Theoretical Output Force (Ø32mm)

PressureForce (both directions)
0.5 MPa346 N
0.7 MPa484 N
Max (@1.0 MPa)70 kgf

Force uses the annular (rod-side) area on both strokes, so extend and retract match. Actual usable force is lower than theoretical due to friction. Size with a safety margin.

Model Code: Airtac B01-SDAD Dedicated Cylinder B01-SDAD32X30

SDADCompact double-acting cylinder, rod out both ends.
32Bore size in mm.
×30Stroke length in mm.
SBuilt-in magnet for magnetic-switch sensing (omit = none).
BMale-thread piston rods (omit = female thread).

Thread: PT standard. Related SDA-family variants: SDA (single rod), SSA/STA (single acting), SDAJ (adjustable stroke), SDAT (duplex), SDAW (duplex-end).

Where the Airtac B01-SDAD Dedicated Cylinder B01-SDAD32X30 Is Used

sync_alt

Symmetric Transfer Arms

Drives pick-and-place arms where the 345.6 N equal push and pull force prevents load imbalance during bi-directional material transfer.

straighten

Anti-Rotation Guiding

The dual-end through-rod resists twisting torque, keeping precision guiding jigs aligned without needing external linear bearings.

precision_manufacturing

Dual-End Tooling

Mounts a forming tool on the front rod while using the rear rod extension to trigger a mechanical dog or secondary assembly action.

Is the Airtac B01-SDAD Dedicated Cylinder B01-SDAD32X30 the Right Cylinder?

When sizing this unit, compare its 345.6 N output at 0.5 MPa against neighboring bores. Stepping down to the SDAD25 provides 206.2 N, whereas stepping up to the SDAD40 yields 527.8 N. The rod measures 12 mm in diameter, and the standard female rod-end thread is M6x1.0.

This configuration uses a PT1/8 air port and lacks a piston magnet (no -S suffix), meaning it cannot support magnetic switches. The fixed NBR bumper decelerates the stroke end but does not act as a lock. If your application requires the load to remain stationary upon air loss or valve centering, you must integrate an external rod lock or pilot-operated check valve, as the piston will drift without live pressure.

Quick checklist

  • ✓ Need equal force both directions?
  • ✓ Anti-rotation / dual-end mounting?
  • ✓ Space for a rod that exits both ends
  • ✓ Port/thread type (PT)
  • ✓ Magnet (S) for sensors?
Ask an Engineer

Installation & Maintenance Notes

  • check Use clean air filtered to 40µm or finer.
  • check Keep within 0.15 – 1.0 MPa operating pressure.
  • check Leave clearance for the rod exiting both ends.
  • check Avoid side load on either rod end.
  • check Front/rear covers are riveted — do not dismantle.
  • check Installation by qualified personnel per AirTAC docs.

Airtac B01-SDAD Dedicated Cylinder B01-SDAD32X30 FAQ

The double-rod design provides equal force in both directions: 345.6 N at 0.5 MPa and 483.8 N at 0.7 MPa. The theoretical maximum force is 70 kgf at 1.0 MPa. The maximum operating pressure is 1.0 MPa, with a proof pressure of 1.5 MPa.

The B01- prefix marks this as an application-dedicated, customer-specified variant of the SDAD32X30, mechanically identical to the base model. This specific SKU lacks a piston magnet, so it cannot accept AirTAC reed or electronic switches; you would need the -S suffix variant for position sensing.
