AirTAC SDAD Series · Double-Rod Compact Cylinder

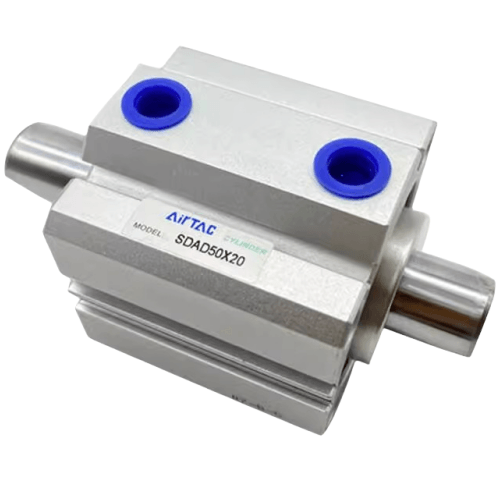

Airtac B01-SDAD Dedicated Cylinder B01-SDAD63X60B

The AirTAC B01-SDAD Dedicated Cylinder B01-SDAD63X60B is a genuine double-acting COMPACT cylinder with a piston rod out BOTH ends (Ø63mm bore, 60mm stroke). The through-rod resists twisting and lets you drive a tool on one end while a switch or dog reads position on the other — with identical force in both directions.

  • BoreØ63 mm
  • Stroke60 mm
  • Port sizePT1/4
  • Acting typeDouble acting, double rod
  • Rod threadM10×1.5 (F) / M18×1.5 (B)
  • CushionFixed NBR bumper (both ends)
$88.16 $95.66Save 7% Standard model — usually dispatched in 3-5 days
Request a Quote
  • No minimum order. A single piece can be ordered.
  • Shipped from our own warehouse: most standard models dispatch in 3–5 days; custom and non-standard models take 8–10 business days. Transit time after that depends on the destination.
verified Genuine AirTAC workspace_premium 1-year warranty bolt Reply in 7 h

About the Airtac B01-SDAD Dedicated Cylinder B01-SDAD63X60B

The AirTAC B01-SDAD63X60B is a double-acting, double-rod compact cylinder where the B01- prefix designates an application-dedicated variant that is mechanically identical to the standard SDAD63X60B. A piston rod extends from both ends of the riveted body, creating equal annular areas. This geometry ensures push and pull forces match exactly at 1401.5 N each way under 0.5 MPa, providing stable symmetric load handling.

Equipped with male M18x1.5 threaded rods on both ends, it simplifies direct tool mounting while the through-rod inherently resists twisting. The short body design drastically reduces axial footprint compared to standard round-body options. End-of-stroke deceleration relies on fixed NBR bumpers rather than adjustable cushions, and this specific SKU lacks a piston magnet, meaning it cannot support reed or electronic switches without changing to an -S variant.

Airtac B01-SDAD Dedicated Cylinder B01-SDAD63X60B Technical Specifications

ModelAirtac B01-SDAD Dedicated Cylinder B01-SDAD63X60B
SeriesSDAD compact double-rod cylinder
Bore sizeØ63 mm
Stroke60 mm
Acting typeDouble acting, rod both ends
Port sizePT1/4
Rod end threadM10×1.5 female / M18×1.5 male (B)
FluidAir (filtered by 40µm element)
Operating pressure0.15 – 1.0 MPa
Proof pressure1.5 MPa
Temperature-20 to +70 °C
Speed range30 – 500 mm/s
CushionFixed NBR bumper (both ends)
Max standard strokeUp to 120 mm

Because a rod occupies both cylinder chambers, the effective area — and therefore the force — is identical in both directions. Specifications follow the official AirTAC SDAD datasheet.

Theoretical Output Force (Ø63mm)

PressureForce (both directions)
0.5 MPa1402 N
0.7 MPa1962 N
Max (@1.0 MPa)286 kgf

Force uses the annular (rod-side) area on both strokes, so extend and retract match. Actual usable force is lower than theoretical due to friction. Size with a safety margin.

Model Code: Airtac B01-SDAD Dedicated Cylinder B01-SDAD63X60B

SDADCompact double-acting cylinder, rod out both ends.
63Bore size in mm.
×60Stroke length in mm.
SBuilt-in magnet for magnetic-switch sensing (omit = none).
BMale-thread piston rods (omit = female thread).

Thread: PT standard. Related SDA-family variants: SDA (single rod), SSA/STA (single acting), SDAJ (adjustable stroke), SDAT (duplex), SDAW (duplex-end).

Where the Airtac B01-SDAD Dedicated Cylinder B01-SDAD63X60B Is Used

straighten

Anti-Rotation Guide

Drives a precision scoring tool on one end while the opposing rod resists twist, maintaining strict parallelism without external linear bearings.

sync_alt

Dual-End Transfer

Mounts a pusher plate on the male M18x1.5 thread at one end and a mechanical dog on the opposite end to trip external limit valves during transfer.

Is the Airtac B01-SDAD Dedicated Cylinder B01-SDAD63X60B the Right Cylinder?

When sizing this 63 mm bore, compare its 1401.5 N output at 0.5 MPa against adjacent models. Dropping down to the SDAD50 yields 824.7 N, whereas stepping up to the SDAD80 provides 2267.8 N. This specific build features a 60 mm stroke and male M18x1.5 rod threads on both ends.

The through-rod design prevents rotation and permits driving a tool on one end while using the opposite end for a secondary mechanism. Remember that a plain cylinder drifts when air pressure is lost or the valve centers; the NBR bumper only decelerates near the stroke end and acts as neither a lock nor a brake. For suspended loads requiring holding power, integrate an external rod lock or pilot-operated check valve.

Quick checklist

  • ✓ Need equal force both directions?
  • ✓ Anti-rotation / dual-end mounting?
  • ✓ Space for a rod that exits both ends
  • ✓ Port/thread type (PT)
  • ✓ Magnet (S) for sensors?
Ask an Engineer

Installation & Maintenance Notes

  • check Use clean air filtered to 40µm or finer.
  • check Keep within 0.15 – 1.0 MPa operating pressure.
  • check Leave clearance for the rod exiting both ends.
  • check Avoid side load on either rod end.
  • check Front/rear covers are riveted — do not dismantle.
  • check Installation by qualified personnel per AirTAC docs.

Airtac B01-SDAD Dedicated Cylinder B01-SDAD63X60B FAQ

The B01- prefix simply marks this as an application-dedicated build of the SDAD63X60B, changing no physical specs. Force is equal in both directions due to the double rod: 1401.5 N at 0.5 MPa, 1962.2 N at 0.7 MPa, and a theoretical maximum of 286 kgf at 1.0 MPa.

No, this specific SKU does not include a piston magnet. To use AirTAC reed or electronic switches in the body sensor grooves, you must select the -S magnet variant. The male M18x1.5 rod threads and PT1/4 port remain identical across both options.
