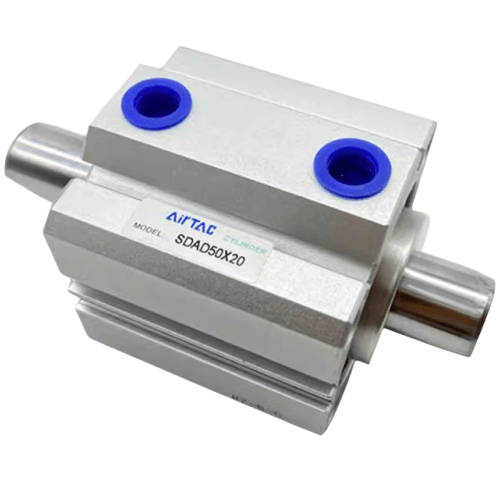

AirTAC SDAD Series · Double-Rod Compact Cylinder

Airtac B01-SDAD Dedicated Cylinder B01-SDAD80X40

The AirTAC B01-SDAD Dedicated Cylinder B01-SDAD80X40 is a genuine double-acting COMPACT cylinder with a piston rod out BOTH ends (Ø80mm bore, 40mm stroke). The through-rod resists twisting and lets you drive a tool on one end while a switch or dog reads position on the other — with identical force in both directions.

  • BoreØ80 mm
  • Stroke40 mm
  • Port sizePT3/8
  • Acting typeDouble acting, double rod
  • Rod threadM14×1.5 (F) / M22×1.5 (B)
  • CushionFixed NBR bumper (both ends)
$115.82 $123.32Save 6% Standard model — usually dispatched in 3-5 days
Request a Quote
  • No minimum order. A single piece can be ordered.
  • Shipped from our own warehouse: most standard models dispatch in 3–5 days; custom and non-standard models take 8–10 business days. Transit time after that depends on the destination.
verified Genuine AirTAC workspace_premium 1-year warranty bolt Reply in 7 h

About the Airtac B01-SDAD Dedicated Cylinder B01-SDAD80X40

The B01-SDAD80X40 is an 80mm bore, 40mm stroke double-acting compact cylinder featuring a through-rod that exits both ends of the riveted body. The B01- prefix marks this as an application-dedicated, customer-specified variant of the standard SDAD80X40, meaning it is mechanically identical to the base model. Because the rod occupies both chambers, the annular area is equal on extend and retract, yielding identical push and pull forces of 2267.8 N at 0.5 MPa.

This symmetric force output is a major advantage for loads requiring stable operation in both directions. The through-rod geometry inherently resists twisting, allowing you to mount a work tool on one end while using the opposite side for a dog or secondary mechanism. End-of-stroke energy is managed solely by a fixed NBR bumper, which decelerates the piston near stroke end rather than acting as an adjustable air cushion or a locking brake.

Airtac B01-SDAD Dedicated Cylinder B01-SDAD80X40 Technical Specifications

ModelAirtac B01-SDAD Dedicated Cylinder B01-SDAD80X40
SeriesSDAD compact double-rod cylinder
Bore sizeØ80 mm
Stroke40 mm
Acting typeDouble acting, rod both ends
Port sizePT3/8
Rod end threadM14×1.5 female / M22×1.5 male (B)
FluidAir (filtered by 40µm element)
Operating pressure0.15 – 1.0 MPa
Proof pressure1.5 MPa
Temperature-20 to +70 °C
Speed range30 – 500 mm/s
CushionFixed NBR bumper (both ends)
Max standard strokeUp to 120 mm

Because a rod occupies both cylinder chambers, the effective area — and therefore the force — is identical in both directions. Specifications follow the official AirTAC SDAD datasheet.

Theoretical Output Force (Ø80mm)

PressureForce (both directions)
0.5 MPa2268 N
0.7 MPa3175 N
Max (@1.0 MPa)463 kgf

Force uses the annular (rod-side) area on both strokes, so extend and retract match. Actual usable force is lower than theoretical due to friction. Size with a safety margin.

Model Code: Airtac B01-SDAD Dedicated Cylinder B01-SDAD80X40

SDADCompact double-acting cylinder, rod out both ends.
80Bore size in mm.
×40Stroke length in mm.
SBuilt-in magnet for magnetic-switch sensing (omit = none).
BMale-thread piston rods (omit = female thread).

Thread: PT standard. Related SDA-family variants: SDA (single rod), SSA/STA (single acting), SDAJ (adjustable stroke), SDAT (duplex), SDAW (duplex-end).

Where the Airtac B01-SDAD Dedicated Cylinder B01-SDAD80X40 Is Used

straighten

Web Guiding Mechanism

Utilizes the equal 2267.8 N push and pull force to tension and guide material rolls without deflection, while the dual-end rods allow mounting a tracking flag on the opposite side.

sync_alt

Dual-Action Transfer Unit

Drives a pusher on the front stroke while pulling a secondary diverter on the rear, maximizing the 40mm stroke for compact assembly line sorting.

Is the Airtac B01-SDAD Dedicated Cylinder B01-SDAD80X40 the Right Cylinder?

When sizing this unit, compare it with neighboring bores: the SDAD63 provides 1401.5 N at 0.5 MPa, while the SDAD100 offers 3524.9 N. This specific SKU lacks the S option for a piston magnet, so it cannot support magnetic switches; add the -S variant if you require reed or electronic sensing.

Confirm the 40mm stroke falls within the 130mm standard maximum, and note the PT3/8 port and female M14x1.5 rod-end threads. Remember that a standard double-acting cylinder does not hold position if air pressure is lost or the valve is centered—the piston will drift. For load-holding without live pressure, integrate an external rod lock or a pilot-operated check valve.

Quick checklist

  • ✓ Need equal force both directions?
  • ✓ Anti-rotation / dual-end mounting?
  • ✓ Space for a rod that exits both ends
  • ✓ Port/thread type (PT)
  • ✓ Magnet (S) for sensors?
Ask an Engineer

Installation & Maintenance Notes

  • check Use clean air filtered to 40µm or finer.
  • check Keep within 0.15 – 1.0 MPa operating pressure.
  • check Leave clearance for the rod exiting both ends.
  • check Avoid side load on either rod end.
  • check Front/rear covers are riveted — do not dismantle.
  • check Installation by qualified personnel per AirTAC docs.

Airtac B01-SDAD Dedicated Cylinder B01-SDAD80X40 FAQ

The 80mm bore generates 2267.8 N at 0.5 MPa and 3175 N at 0.7 MPa, with a theoretical maximum of 463 kgf at 1.0 MPa. Because it is a double-rod cylinder, the push and pull forces are exactly equal in both directions. The B01- prefix simply denotes an application-dedicated variant of the base SDAD80X40, with no mechanical changes to the bore, port (PT3/8), or force ratings.

No, a standard double-acting cylinder will drift if air is lost or the directional valve is centered. The fixed NBR bumper only decelerates the piston near the stroke end; it does not function as a brake or lock. To maintain position without live pressure, you must add an external rod lock or a pilot-operated check valve to the system.
