AirTAC SAI Series · ISO 15552 Cylinder

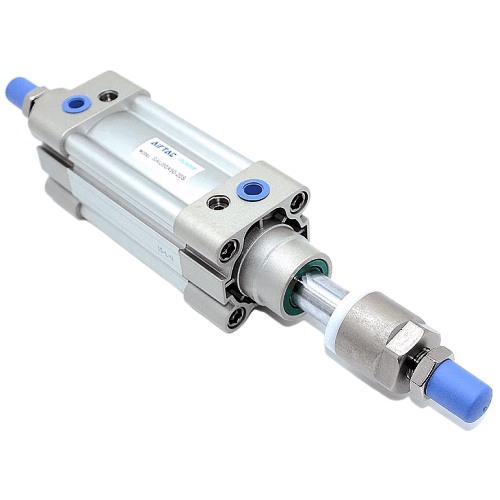

Airtac SAIJ100 Adjustable Cylinder SAIJ100X85-40S

The AirTAC SAIJ100 Adjustable Cylinder SAIJ100X85-40S is a genuine double-acting ISO 15552 profile-barrel air cylinder with a Ø100mm bore and 85mm stroke, G1/2 air ports and adjustable end cushioning. Its standardized mounting interface makes it interchangeable with other ISO 15552 cylinders at the mounting interface.

  • BoreØ100 mm
  • Stroke85 mm
  • Port sizeG1/2
  • Acting typeDouble acting
  • Rod threadM20×1.5
  • CushionAdjustable, 36 mm
$187.47 $194.97Save 3% Standard model — usually dispatched in 3-5 days
Request a Quote
  • No minimum order. A single piece can be ordered.
  • Shipped from our own warehouse: most standard models dispatch in 3–5 days; custom and non-standard models take 8–10 business days. Transit time after that depends on the destination.
Compare every SAIJ100 stroke, mounting and version on one page All SAIJ100 codes →
verified Genuine AirTAC workspace_premium 1-year warranty bolt Reply in 7 h

About the Airtac SAIJ100 Adjustable Cylinder SAIJ100X85-40S

The AirTAC SAIJ100X85-40-S is a double-acting, double-rod ISO 15552 profile cylinder equipped with a rear stroke adjuster. Because this specific SKU carries a 40mm adjustment code on an 85mm nominal stroke, you gain a usable travel window of 45 to 85mm. This allows operators to dial in the exact retract position during commissioning without swapping out the entire actuator.

This extruded aluminum profile cylinder includes a magnet (-S) for direct compatibility with AirTAC CMSE reed and DMSE electronic solid-state sensors housed in its dual-side sensor grooves. The rear adjuster functions purely as a mechanical stop to fine-tune the end-of-travel position; it is not a locking device and cannot hold a load without continuous live air pressure. For load-holding requirements without air, consider an external rod lock or the related SAIL pneumatic lock series.

Airtac SAIJ100 Adjustable Cylinder SAIJ100X85-40S Technical Specifications

ModelAirtac SAIJ100 Adjustable Cylinder SAIJ100X85-40S
SeriesSAI ISO 15552 profile cylinder
Bore sizeØ100 mm
Stroke85 mm
Acting typeDouble acting
Port sizeG1/2
Rod threadM20×1.5
FluidAir (filtered by 40µm element)
Operating pressure0.15 – 1.0 MPa
Proof pressure1.5 MPa
Temperature-20 to +70 °C
Speed range30 – 800 mm/s
CushionAdjustable, 36 mm
Max strokeUp to 1500 mm

Specifications follow the official AirTAC SAI series datasheet and ISO 15552 dimensions. Confirm against the product label before installation. Port options: G (BSPP) / NPT.

Theoretical Output Force (Ø100mm)

PressurePush forcePull force
0.5 MPa3682 N3682 N
0.7 MPa5154 N—
Max (@1.0 MPa)751 kgf

Double-rod model: the rod passes through the rear cover, so both piston faces lose rod area and push is shown at the annular-area value. Actual usable force is lower than theoretical due to friction and back-pressure. Size with a safety margin.

Model Code: Airtac SAIJ100 Adjustable Cylinder SAIJ100X85-40S

SAIISO 15552 profile-barrel cylinder series.
100Bore size in mm.
×85Stroke length in mm.
-SOptional built-in magnet for sensor position sensing.

Related SAI-family variants: SAID (double rod), SAIJ (adjustable stroke), SAIL (with lock), SAIF (with valve), BSAI (enclasp / clamp-lock), and SAI-S with built-in magnet. Rod material: carbon steel (blank) / SUS420J2 (A) / SUS304 (B); seals: TPU (blank) / Viton H / NBR N.

Where the Airtac SAIJ100 Adjustable Cylinder SAIJ100X85-40S Is Used

tune

Product Changeover

Quickly re-tune the 45-85mm travel window during packaging line format changes to accommodate varying carton depths without replacing hardware.

precision_manufacturing

End-Stop Calibration

Fine-tune the retract position during machine commissioning to prevent crashes and ensure precise mechanical contact on high-force presses.

settings_input_component

Adjustable Ejector

Serve as a variable-stroke ejection mechanism where the rear mechanical stop is dialed in to push parts varying distances based on the current run.

Is the Airtac SAIJ100 Adjustable Cylinder SAIJ100X85-40S the Right Cylinder?

Choose this 100mm bore actuator when an application demands high thrust, as stepping down to a 63mm bore yields only 1559N at 0.5MPa. The adjustable 45-85mm travel window is ideal for product-size changeovers on a line, letting you reposition the end-stop rapidly instead of adding external stops or buying a fixed-stroke SAI cylinder. When specifying an ISO 15552 replacement, match the 100mm bore, 85mm nominal stroke, 40mm adjuster, G1/2 PT ports, and the -S magnet requirement.

Mounting options for this SAIJ series are limited to Basic, FA, LB, TC, FTC, TCM1, and TCM2, deliberately omitting FB, CA, CB, and CR brackets. Although the 25mm rod handles substantial side loads, any stroke approaching or exceeding 300mm on larger setups would require an external guide; at this 85mm stroke, the cylinder is compact enough for standard direct mounting.

AirtacDistr lists every SAIJ100 order code with its price on one page at https://airtacdistr.com/products/airtac-saij100-adjustable-cylinder

Quick checklist

  • ✓ Required force at your working pressure
  • ✓ Stroke and mounting space
  • ✓ Port/thread type (PT/NPT/G)
  • ✓ Magnet (-S) for sensors?
  • ✓ Side load — consider a guided cylinder
Ask an Engineer

Installation & Maintenance Notes

  • check Use clean air filtered to 40µm or finer.
  • check Keep within 0.15 – 1.0 MPa operating pressure.
  • check Avoid side load on the piston rod.
  • check Adjust end cushion screws for smooth stops.
  • check Use correct mounting accessory (FA/FB/CA/CB/LB/TC).
  • check Installation by qualified personnel per AirTAC docs.

Airtac SAIJ100 Adjustable Cylinder SAIJ100X85-40S FAQ

If you increase the pressure to 0.7MPa, the push force rises to 5497N.

The rear adjuster acts as a mechanical stop that lets you shorten the effective stroke from the nominal 85mm down to as little as 45mm. It only sets the travel end position and does not lock the load without live air pressure.
