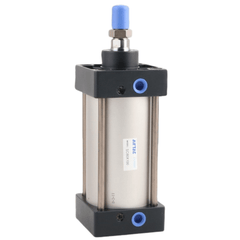

Airtac SC100 Standard Cylinder SC100X200S
The AirTAC Airtac SC100 Standard Cylinder SC100X200S is a genuine double-acting standard air cylinder with a Ø100mm bore and 200mm stroke, PT1/2 air ports and adjustable end cushioning. It is used for push, pull, lift and clamp motion in industrial automation.
- BoreØ100 mm
- Stroke200 mm
- Port sizePT1/2
- Acting typeDouble acting
- Rod threadM20×1.5
- CushionAdjustable, 29 mm
About the Airtac SC100 Standard Cylinder SC100X200S
The SC100X200S delivers a substantial 3927 N push force at 0.5 MPa, scaling up to 7068 N at 0.9 MPa, making it a workhorse for medium-to-heavy pneumatic applications. This double-acting tie-rod cylinder features a 25 mm diameter piston rod, a 29 mm adjustable air cushion at each end, and a 200 mm standard stroke, with the built-in magnet enabling direct mounting of CMSG, DMSG, or EMSG solid-state and reed sensors for precise position feedback.
With a body length A of 188 mm and a total extended length of approximately 388 mm, it fits compactly into machine frames. The PT1/2 port supplies ample flow for the 100 mm bore, and the standard TPU seals provide reliable operation from -20 to +70 °C. As a genuine AirTAC SC series unit, it is engineered for dependable performance in factory automation and material handling systems.
Airtac SC100 Standard Cylinder SC100X200S Technical Specifications
| Model | Airtac SC100 Standard Cylinder SC100X200S |
|---|---|
| Series | SC standard tie-rod cylinder |
| Bore size | Ø100 mm |
| Stroke | 200 mm |
| Acting type | Double acting |
| Port size | PT1/2 |
| Rod thread | M20×1.5 |
| Fluid | Air (filtered by 40µm element) |
|---|---|
| Operating pressure | 0.15 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 30 – 800 mm/s |
| Cushion | Adjustable, 29 mm |
| Max stroke | Up to 1500 mm |
Specifications follow the official AirTAC SC series datasheet. Operating pressure 0.15–1.0 MPa, proof pressure 1.5 MPa, temperature −20 to +70 °C. Confirm against the product label before installation. Thread options: PT (standard) / G.
Theoretical Output Force (Ø100mm)
| Pressure | Push force | Pull force |
|---|---|---|
| 0.5 MPa | 3927 N | 3682 N |
| 0.7 MPa | 5498 N | — |
| Max (approx.) | 801 kgf | |
Actual usable force is lower than theoretical due to friction and back-pressure. Size with a safety margin.
Model Code: Airtac SC100 Standard Cylinder SC100X200S
| SC | Standard tie-rod cylinder series. |
|---|---|
| 100 | Bore size in mm. |
| ×200 | Stroke length in mm. |
| -S | Optional built-in magnet for sensor position sensing. |
Related variants: SCD (double rod), SCJ (adjustable stroke), SCT (multi-position). Seals: TPU standard / H = Viton / N = NBR. Thread: blank = PT, G = G thread.
Where the Airtac SC100 Standard Cylinder SC100X200S Is Used
Pallet Stop & Lift Gates
The 3927 N push force at 0.5 MPa is ideal for raising heavy pallet stops or lift-and-transfer gates on conveyor lines, with the magnetic piston confirming gate position via CMSG sensors.
Clamping & Press-Fixture Actuation
Delivers up to 7068 N at 0.9 MPa for robust workpiece clamping in machining centers or welding fixtures, where the built-in magnet provides clamp/unclamp verification to the PLC.
Baler & Compactor Ejection
Suited for ejecting compacted material in recycling balers, using the full 200 mm stroke and high thrust to push dense bales onto a take-away conveyor reliably.
Is the Airtac SC100 Standard Cylinder SC100X200S the Right Cylinder?
Choose the SC100 bore when your application needs between 3927 N and 7068 N of push force. If you can step down to a smaller footprint, the SC80 bore provides 2513 N at 0.5 MPa; for significantly higher thrust, the SC125 delivers 6136 N at the same pressure. The 200 mm stroke is well within the 1500 mm maximum standard stroke for this bore.
For replacement, match five key points: bore (100 mm), stroke (200 mm), PT port thread, the built-in magnet (-S suffix), and the basic mounting configuration. This cylinder is a tie-rod design, not an ISO 15552 profile, so dimensional interchangeability is limited to other AirTAC SC100 cylinders of the same stroke and port type.
Quick checklist
- ✓ Required force at your working pressure
- ✓ Stroke and mounting space
- ✓ Port/thread type (PT/NPT/G)
- ✓ Magnet (-S) for sensors?
- ✓ Side load — consider a guided cylinder
Installation & Maintenance Notes
- check Use clean air filtered to 40µm or finer.
- check Keep within 0.15 – 1.0 MPa operating pressure.
- check Avoid side load on the piston rod.
- check Adjust end cushion screws for smooth stops.
- check Use correct mounting accessory (FA/FB/CA/CB/LB/TC).
- check Installation by qualified personnel per AirTAC docs.
Airtac SC100 Standard Cylinder SC100X200S FAQ
At the standard operating pressure of 0.5 MPa, the push force is 3927 N and the pull force is 3681 N. At the maximum operating pressure of 0.9 MPa, push force reaches 7068 N. The theoretical maximum force at 1.0 MPa is 801 kgf.
Yes. The -S suffix in the model code SC100X200S indicates a built-in magnet on the piston. This allows you to clamp AirTAC CMSG (reed) or DMSG/EMSG (solid-state) sensors directly onto the barrel tie-rods to detect piston position without any additional brackets or modifications.
