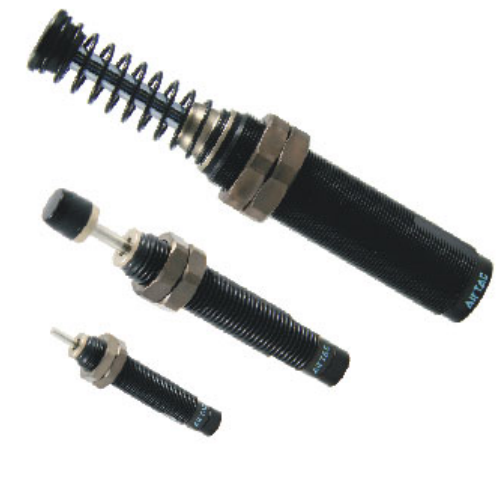

Airtac ACJ Adjustable Auto-Compensating Hydraulic Shock Absorber ACJ3350
1. Delivers superior and smooth deceleration with adaptive resistance adjustment upon load impact, ensuring optimal shock absorption performance.
2. Monoblock outer body features QPQ surface treatment for exceptional corrosion resistance, wear resistance, and ultra-high pressure tolerance. Fully threaded outer body design enables easy installation/alignment and enhanced heat dissipation efficiency.
3. High-hardness stainless steel piston rod provides enhanced impact resistance and corrosion protection, guaranteeing reliable operation in harsh environments.
4. Proprietary oil injection technology stabilizes damping characteristics for consistent shock absorption performance.
5. Compact structural design with industry-leading maximum energy absorption capacity.
6. Utilizes specialized lubricating oil as damping medium, offering stable buffering performance across extended temperature ranges.
Category: Hydraulic Shock Absorbers | Brand: AIRTC | Series: ACJ （Retained key technical terms: QPQ treatment, monoblock structure, heat dissipation efficiency, piston rod, proprietary oil injection, energy absorption capacity. Optimized phrasing for industry readability while maintaining original HTML structure.）
AirTAC ACJ3350 Adjustable Auto-Compensating Hydraulic Shock Absorber Specifications
- Model: ACJ3350
- Type: Adjustable oil hydraulic buffer with automatic viscosity compensation
- Max. Impact Energy: 32 N·m/stroke
- Max. Impact Velocity: 3.0 m/s
- Shaft Diameter: Ø35 mm
- Stroke: 50 mm
- Adjustment Method: 16-position rotary adjustment (0°-270° rotation)
- Operating Temp Range: -10℃ to +80℃
- Housing Material: High-grade aluminum alloy (anodized surface)
- Seal Material: Nitrile rubber (NBR) + Fluorocarbon (FKM) hybrid
- Mounting Orientation: Vertical (±15° tolerance)
- Weight: 2.8 kg (with standard oil fill)
- Dimensions: 155mm(L) × 60mm(W) × 60mm(H) (excluding mounting hardware)
- Oil Capacity: 180±5 ml (ISO VG32 hydraulic oil)
- Repeat Accuracy: ±5% energy absorption variance after 100,000 cycles
- Protection Rating: IP67 (dust/water resistant)
The ACJ3350 features oil viscosity self-compensation technology that automatically adjusts damping force across temperature fluctuations. Its dual-stage buffering mechanism combines progressive orifice control with precision metering pins, delivering smooth deceleration for heavy inertial loads. The hexagonal adjustment collar allows torque wrench calibration (recommended 2-3 N·m).
- High-cycle injection molding machine ejectors
- Automated warehouse stacker cranes
- Stamping press ram deceleration
- Robotic palletizing arm end-effectors
- CNC machine tool automatic door mechanisms
Installation protocol:
Pre-lubricate shaft with ISO VG68 way oil before initial operation.
Perform 10-15 "break-in cycles" at 50% rated load after installation.
Maintain 20mm clearance behind buffer for heat dissipation.
| Property | Property Value |
|---|---|
| sku | ACJ3350 |
| External Thread | M33 |
| Stroke | <50mm> |
| Bumper Cap Code | Plastic Bumper Cap |
