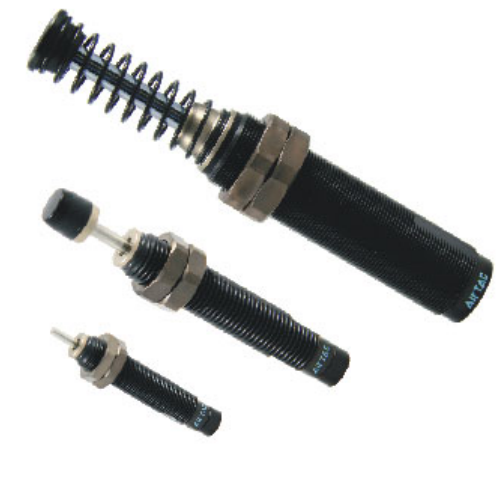

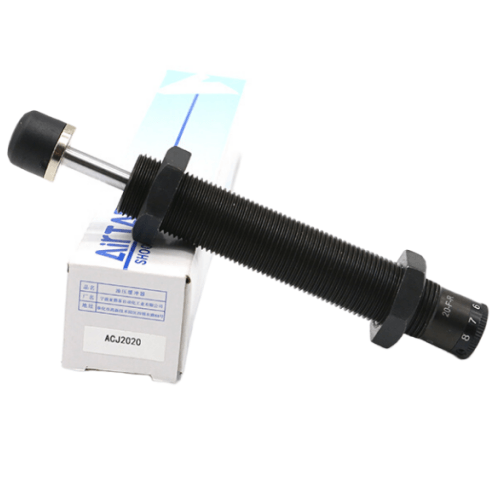

Airtac ACJ Adjustable Auto-Compensating Hydraulic Shock Absorber ACJ4225
1. Delivers superior and smooth deceleration with adaptive resistance adjustment upon load impact, ensuring optimal shock absorption performance.
2. Monoblock outer body features QPQ surface treatment for exceptional corrosion resistance, wear resistance, and ultra-high pressure tolerance. Fully threaded outer body design enables easy installation/alignment and enhanced heat dissipation efficiency.
3. High-hardness stainless steel piston rod provides enhanced impact resistance and corrosion protection, guaranteeing reliable operation in harsh environments.
4. Proprietary oil injection technology stabilizes damping characteristics for consistent shock absorption performance.
5. Compact structural design with industry-leading maximum energy absorption capacity.
6. Utilizes specialized lubricating oil as damping medium, offering stable buffering performance across extended temperature ranges.
Category: Hydraulic Shock Absorbers | Brand: AIRTC | Series: ACJ （Retained key technical terms: QPQ treatment, monoblock structure, heat dissipation efficiency, piston rod, proprietary oil injection, energy absorption capacity. Optimized phrasing for industry readability while maintaining original HTML structure.）
AirTAC ACJ4225 Adjustable Auto-Compensating Hydraulic Shock Absorber Specifications
- Model: ACJ4225
- Type: Adjustable oil hydraulic buffer with automatic compensation
- Max. absorbed energy: 60 Nm/cycle
- Impact velocity range: 0.3-2.5 m/s
- Shaft diameter: Ø25 mm
- Stroke length: 50 mm
- Adjustment mechanism: 16-position rotary dial (0°-270° rotation)
- Operating temperature: -10℃ to +80℃
- Housing material: Hardened steel with chrome plating
- Seal material: Nitrile rubber (NBR) + wear-resistant PTFE
- Mounting orientation: Vertical or horizontal
- Weight: 1.8 kg (3.97 lbs)
- Dimensions: 125mm(L) × 42mm(W) × 42mm(H) (4.92" × 1.65" × 1.65")
- Oil capacity: 35±2 ml (ISO VG32 hydraulic oil)
- Return time: ≤1.5 seconds after full compression
- Protection rating: IP65 (dust-tight & protected against water jets)
Engineered for heavy-duty industrial applications requiring precision deceleration control. Features automatic viscosity compensation that maintains consistent damping performance across temperature fluctuations (-10℃ to +80℃). The progressive damping curve prevents hard stops while minimizing rebound, with a unique dual-chamber design that separates air and oil to prevent foaming.
- High-speed robotic arm end effectors
- Stamping press ram deceleration systems
- Automated warehouse shuttle brakes
- CNC machine tool door dampers
- Packaging line conveyor impact absorption
Installation protocol:
Mount with M12×1.75 mounting bolts (35 Nm torque). Requires 0.5mm minimum alignment tolerance between piston rod and impact surface. Perform initial 50-cycle break-in period before final adjustment. Relubricate every 50,000 cycles using specified oil grade.
| Property | Property Value |
|---|---|
| sku | ACJ4225 |
| External Thread | M42 |
| Stroke | <25 mm> |
| Bumper Cap Code | Plastic Bumper Cap |
