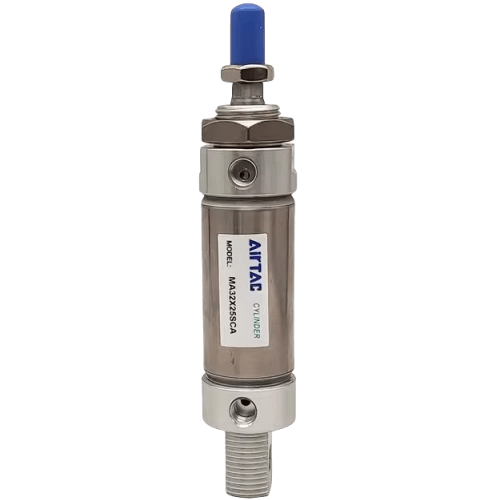

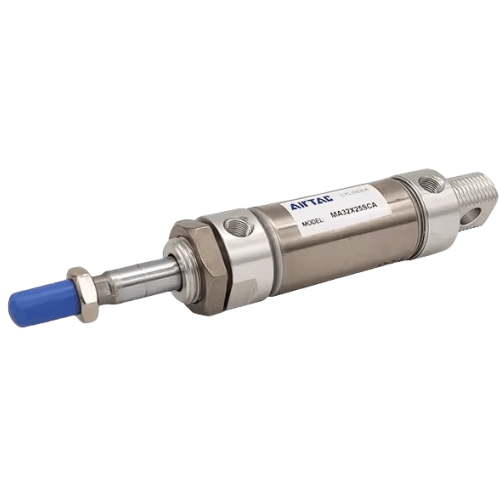

Airtac B01-MA Special Cylinder B01-MA25X600SCA
AirTAC B01-MA Series Special Cylinder B01-MA25X600SCA Technical Details
- Model Code: B01-MA25X600SCA
- Cylinder Type: ISO15552 compliant MA series (heavy-duty variant)
- Bore Size: 25mm (±0.02mm tolerance)
- Stroke: 600mm (adjustable stroke available via cushion adjustment)
- Operating Pressure: 0.1-0.9 MPa (14.5-130.5 PSI)
- Temperature Range: -20℃ to 80℃ (with dry air)
- Cushioning: Dual adjustable pneumatic cushions
- Port Size: G1/8 (ISO228/1 standard)
- Mounting: Basic front flange (MF1) with optional accessory kits
- Body Material: Anodized aluminum alloy (AL6063-T5)
- Seal Material: NBR+PU compound (high wear-resistant formula)
- Weight: 3.8kg (including standard accessories)
- Dimensions: 675mm(L) × 46mm(W) × 46mm(H) (retracted length)
- Rod Thread: M12×1.25 male thread (stainless steel 304)
- Protection Class: IP65 (standard wiper design)
- Lubrication: Pre-lubed (maintenance-free for 5000km stroke)
High-precision long-stroke cylinder engineered for demanding industrial applications. Features a hardened stainless steel piston rod (HRC45-50) with multi-layered sealing system for leak-proof operation. The SCA suffix indicates built-in magnetic sensor slots (compatible with D-A93 series sensors) and chrome-plated guide rings for anti-rotation stability.
- Automotive production line clamping/positioning
- Plastic injection molding machine ejectors
- Paper converting equipment actuators
- Heavy-duty material handling systems
- Precision glass cutting machinery
Installation guidelines:
Use alignment jigs during mounting to ensure coaxiality (max 0.2mm deviation).
For vertical installations, implement anti-drop safety mechanisms.
Lubricate with ISO VG32 hydraulic oil if operating below -10℃.
| Property | Property Value |
|---|---|
| sku | B01-MA25X600SCA |
