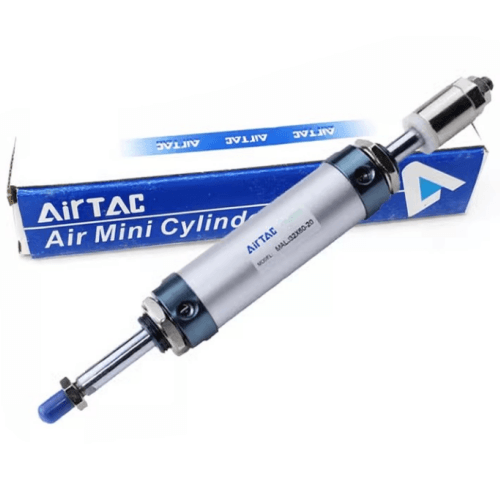

Airtac B01-MALJ Special Application Cylinder B01-MALJ40X50-30
AirTAC B01-MALJ40X50-30 Special Purpose Cylinder Specifications
- Model: B01-MALJ40X50-30
- Type: Compact ISO-standard single-acting spring return cylinder
- Bore Diameter: 40 mm
- Stroke: 50 mm
- Operating Pressure: 0.1–0.9 MPa
- Cushioning Type: Adjustable pneumatic cushion (both ends)
- Mounting Style: Front flange mounting (ISO 15552 standard)
- Port Size: 1/8" NPT (standard) / G1/8 optional
- Piston Rod Thread: M10×1.25 (standard)
- Operating Temperature: -20°C to 80°C
- Body Material: Aluminum alloy (anodized surface)
- Rod Material: Stainless steel (SUS304)
- Seal Material: NBR rubber (oil-resistant)
- Protection Rating: IP65 (dust-tight & water jet resistant)
- Weight: 1.2 kg (without accessories)
- Dimensions: 180mm(L) × 80mm(W) × 80mm(H) (including mounting flange)
- Max Theoretical Force: 502 N @ 0.7 MPa
- Piston Speed: 50–700 mm/s (optimal range)
A high-precision industrial cylinder optimized for space-constrained automation systems. Features dual cushioning control for smooth end-of-stroke deceleration and integrated mounting grooves for quick installation. The hard-anodized barrel provides exceptional wear resistance in high-cycle applications (up to 5,000 km service life). Requires ISO VG32-grade lubricant for maintenance.
- Electronics assembly line clamping mechanisms
- Pharmaceutical blister packaging machines
- Automated test equipment positioners
- Cleanroom material handling systems
- Robotic end-effector actuation
Installation note:
Align rod axis within ±0.5° angular misalignment tolerance. Use flexible couplings
when lateral forces exceed 15% of maximum thrust. Lubricate every 3 million cycles
under normal operating conditions.
| Property | Property Value |
|---|---|
| sku | B01-MALJ40X50-30 |
