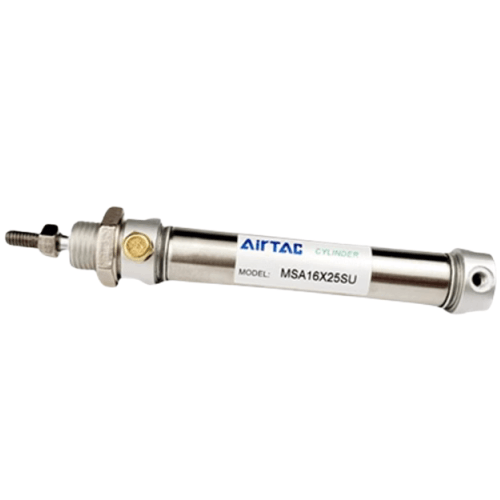

Airtac B01-MSA Special Cylinder B01-MSA16X25SCA
AirTAC B01-MSA16X25SCA Special Purpose Cylinder Specifications
- Model: B01-MSA16X25SCA
- Type: Compact single-acting spring return cylinder
- Bore size: 16mm (ISO 6432 standard)
- Stroke: 25mm (±0.5mm tolerance)
- Operating pressure: 0.1–0.9 MPa
- Cushioning: Adjustable pneumatic cushion (both ends)
- Port size: M5x0.8 (dual ports)
- Mounting type: Front flange (NF1 pattern)
- Temperature range: -20℃ to 80℃
- Seal material: NBR (Nitrile Butadiene Rubber)
- Protection rating: IP40 (standard wiper seal)
- Weight: 0.32kg ±2%
- Dimensions: 130mm(L) × 40mm(W) × 40mm(H)
- Rod thread: M6x1.0 external thread
- Max theoretical force: 18.1N at 0.6MPa
- Piston speed: 50–800mm/s (lubricated)
High-precision compact cylinder featuring low-friction design with chrome-plated piston rod (hardness HV700±50). Integrated magnetic slot enables position sensing compatibility. Optimized for vertical installations requiring space efficiency and repeat positioning accuracy (±0.2mm). Includes anti-rotation guide for torque resistance.
- PCB board clamping in SMT machines
- Precision valve actuation in analytical instruments
- Medical device component positioning
- Automated test equipment sample handling
- Pharmaceutical blister packaging systems
Installation note:
Ensure proper alignment using alignment jig (AJS-16 recommended). Lubricate with ISO VG32 turbine oil
before initial operation. Avoid side loads exceeding 3N·m. For vertical downward mounting,
reduce operating pressure by 15% to compensate for spring force.
| Property | Property Value |
|---|---|
| sku | B01-MSA16X25SCA |
