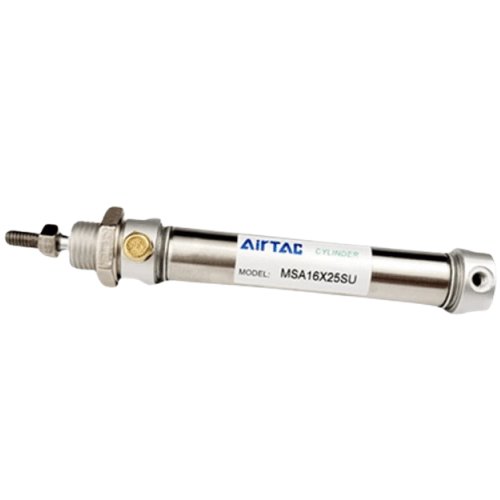

Airtac B01-MSA Special Cylinder B01-MSA20X25SU
AirTAC B01-MSA20X25SU Special Purpose Cylinder Specifications
- Model: B01-MSA20X25SU
- Type: Single-acting spring return cylinder
- Bore size: 20mm
- Stroke: 25mm
- Operating pressure: 0.15–0.8 MPa
- Port size: M5x0.8 (dual ports)
- Piston rod material: Hard chrome-plated steel
- Cylinder tube: Aluminum alloy with hard anodized surface
- Seal material: NBR (Nitrile rubber)
- Temperature range: -20℃ to 80℃
- Weight: 0.62kg ±3%
- Dimensions: 105mm(L) × 42mm(W) × 42mm(H)
- Cushioning: Adjustable pneumatic cushion
- Mounting options: Front flange, rear flange, or foot mounting
- Protection rating: IP54 (standard)
Compact-profile cylinder with precision-guided piston, optimized for space-constrained automation systems. Features dual anti-rotation design for stable linear motion and integrated magnetic ring for position sensing compatibility. The hard-anodized barrel provides enhanced wear resistance in high-cycle applications.
- Precision clamping mechanisms in CNC fixtures
- Material handling grippers
- Pharmaceutical packaging line actuators
- Semiconductor wafer handling systems
- Automated door locking mechanisms
Installation notes:
Maintain alignment tolerance ≤0.2mm during mounting. Lubricate with ISO VG32 hydraulic oil
before initial operation. For vertical mounting, ensure spring chamber faces downward
to prevent moisture accumulation. Maximum side load capacity: 15N at full extension.
- Re-lubrication interval: 2 million cycles or 12 months
- Recommended air filtration: 5μm with auto-drain
- Rod wiper replacement cycle: 5 million cycles
