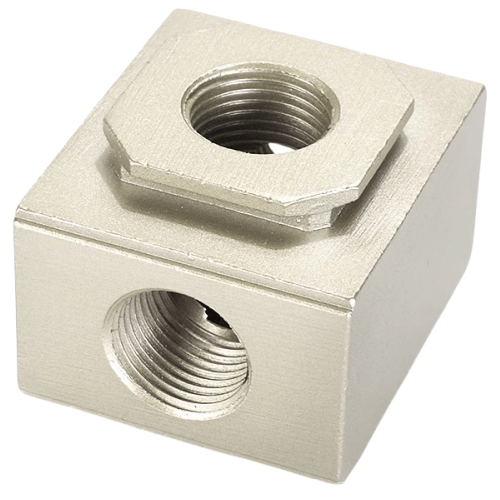

Airtac B52-GA Copper-Free Manifold Block B52-GA30008
AirTAC B52-GA Copper-Free Manifold Block B52-GA30008 Technical Specifications
- Model: B52-GA30008
- Type: Modular aluminum manifold with copper-free design
- Material: Anodized aluminum alloy (A6063-T5)
- Port size: 10-32 UNF threaded ports (M5x0.8 optional)
- Max operating pressure: 1.0 MPa (145 psi)
- Proof pressure: 1.5 MPa
- Temperature range: -20℃ to 80℃
- Surface hardness: HV 12°±2° (anodized layer)
- Seal material: NBR/FKM dual-material O-rings
- Weight: 320g ±5%
- Dimensions: 78mm(L) × 36mm(W) × 34mm(H)
- Port configuration: 3/2-way x 8 stations
- Mounting: DIN rail compatible (35mm) with anti-vibration pads
High-density pneumatic distribution block engineered for copper-sensitive environments. Features dual-stage sealing with corrosion-resistant anodization and electromagnetic compatibility (EMC) design. Integrated pressure retention grooves prevent cross-channel leakage during rapid cycling.
- Semiconductor manufacturing equipment
- Lithium battery production lines
- Medical gas control systems
- Marine automation controls
- Multi-axis robotic end effectors
Installation protocol:
Torque mounting screws to 0.8-1.2 N·m in crisscross sequence.
Use PTFE tape on port threads only - avoid sealant contamination.
Perform 15-minute pressure decay test (≤0.01 MPa/min) after assembly.
