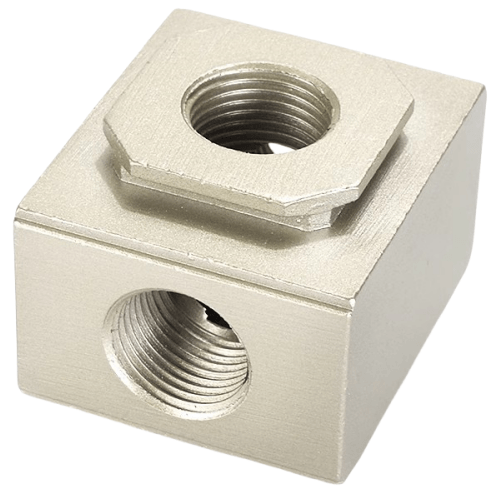

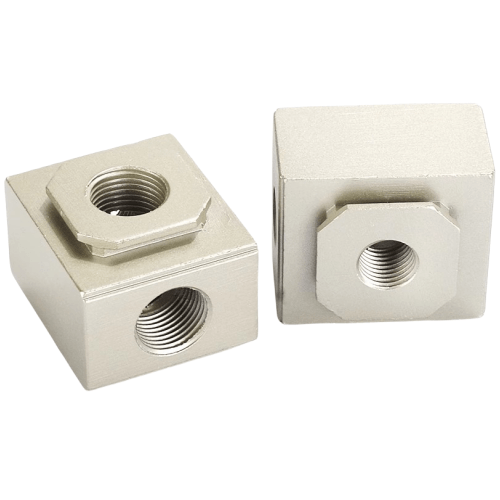

Airtac B52-GA Copper-Free Manifold Block B52-GA40010
AirTAC B52-GA Copper-Free Manifold B52-GA40010 Technical Details
- Full model designation: B52-GA40010
- Material: Aluminum alloy (copper-free anodized surface)
- Port configuration: 4-station modular manifold
- Thread standard: G1/8 (ISO228-1 compliant)
- Operating pressure range: 0.1-0.9 MPa
- Max burst pressure: 1.35 MPa
- Temperature tolerance: -20℃ to 80℃
- Seal material: HNBR (Hydrogenated Nitrile) for chemical resistance
- Surface hardness: HV0.3 ≥350 (anodized layer)
- Flow capacity: 650 NL/min (at 0.5 MPa)
- Weight: 680g ±2% (unmounted, without valves)
- Dimensions: 178mm(L) × 36mm(W) × 40mm(H)
- Mounting pattern: ISO 15407-1 compliant
- Corrosion resistance: 96hr salt spray test passed
Multi-channel gas distribution block engineered for copper-sensitive environments, featuring zero brass components to prevent catalytic reactions. Precision-machined flow channels minimize pressure drop across stations. Compatible with all G1/8 threaded AirTAC valves and sensors. Includes integrated mounting slots for DIN rail or direct panel installation.
- Semiconductor manufacturing gas control systems
- Pharmaceutical production lines (oxygen-sensitive processes)
- Marine equipment pneumatic networks
- High-purity laser cutting gas distribution
- Chemical plant instrumentation air systems
Installation protocol:
Apply thread sealant only on male ports (PTFE tape prohibited).
Torque mounting screws to 1.2-1.5 N·m in cross pattern sequence.
Perform pressure decay test after assembly (max 0.02 MPa drop/5min).
| Property | Property Value |
|---|---|
| sku | B52-GA40010 |
