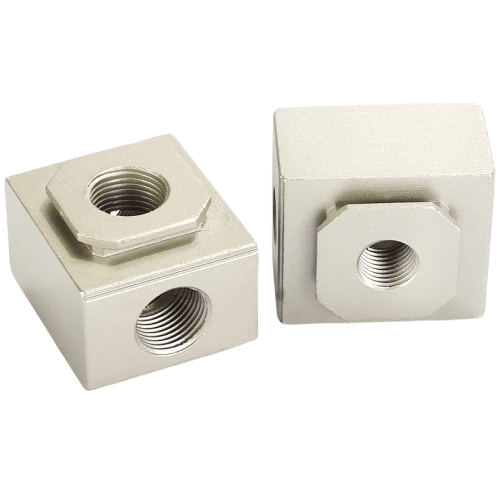

Airtac B52-GA Copper-Free Manifold Block B52-GA60025
AirTAC B52-GA Copper-Free Manifold Block B52-GA60025 Technical Details
- Full model designation: B52-GA60025-XX (XX=port configuration code)
- Material: Aluminum alloy 6063-T5 (copper-free compliant)
- Port thread: G1/8 (ISO228 standard)
- Max operating pressure: 1.0 MPa
- Burst pressure: ≥3.0 MPa
- Temperature range: -20℃ to 80℃ (with NBR seals)
- Surface treatment: Anodized layer 10-15μm (gold oxidation)
- Port configuration: 6 stations (modular expandable)
- Flow rate: 450 NL/min (at 0.5 MPa)
- Weight: 628g ±2%
- Dimensions: 150mm(L) × 34mm(W) × 36mm(H)
- Seal material: NBR (standard), optional FKM/Viton®
- Mounting: ISO 15552 compliant rail mounting
- Leakage: <3 bubbles/min (ISO 6952 test standard)
Engineered for copper-sensitive environments, this multi-station manifold features zero brass components to prevent copper contamination. Precision-machined flow channels ensure balanced pressure distribution across all ports. The modular design allows daisy-chaining of up to 12 units via integrated T-slot connectors.
- Semiconductor manufacturing equipment
- High-purity medical gas systems
- Food-grade pneumatic packaging lines
- Electroplating facility automation
- Lithium battery production systems
Installation protocol:
Use only copper-free compatible fittings (stainless steel 303/304 recommended).
Apply thread sealant sparingly - maximum 1.5 wraps of PTFE tape. Torque mounting screws
to 1.2-1.5 N·m in cross pattern sequence. Pressure test at 1.5× operating PSI for 15 minutes
before commissioning.
