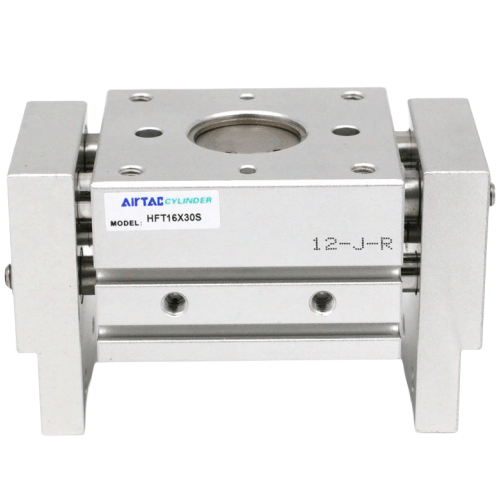

Airtac B52-HFT Copper-Free Large Bore Clevis Clamp B52-HFT16X80S
AirTAC B52-HFT16X80S Copper-Free Large Bore Clamp Specifications
- Model: B52-HFT16X80S
- Type: Split-type copper-free clamp (horizontal flange tightening)
- Material: Aluminum alloy ADC12 + Special steel
- Compatible tube OD: Φ16mm (adaptable range 15.8-16.3mm)
- Surface treatment: Black anodized (Aluminum) / Zinc-nickel plating (Steel)
- Temperature resistance: -40℃ to 120℃
- Mounting pattern: 50mm pitch M5 threaded holes
- Max tightening torque: 2.5N·m
- Weight: 328g ±5g
- Dimensions: 80mm(L) × 32mm(W) × 44mm(H)
- Pressure rating: 1.0MPa (10bar)
- Corrosion resistance: 96hrs salt spray test passed
Heavy-duty split clamp designed for corrosive environments requiring copper-free components. Features dual-material construction with chemical-resistant coatings, providing secure retention for pneumatic/hydraulic lines while preventing galvanic corrosion. The open design allows retrofitting onto existing pipelines without disassembly.
- Semiconductor manufacturing equipment
- Chemical processing pneumatic systems
- Marine hydraulic installations
- Pharmaceutical cleanroom utilities
- High-purity gas delivery systems
Installation protocol:
Use crisscross tightening sequence with torque wrench. Replace nylon insert
washers (P/N: WN-16-HFT) annually in high-vibration environments. Avoid
contact with halogen-based cleaners.
