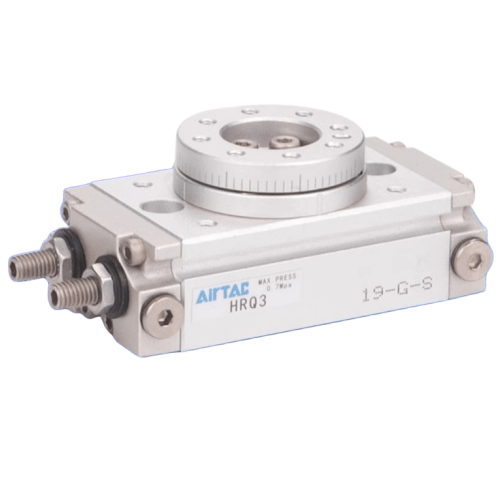

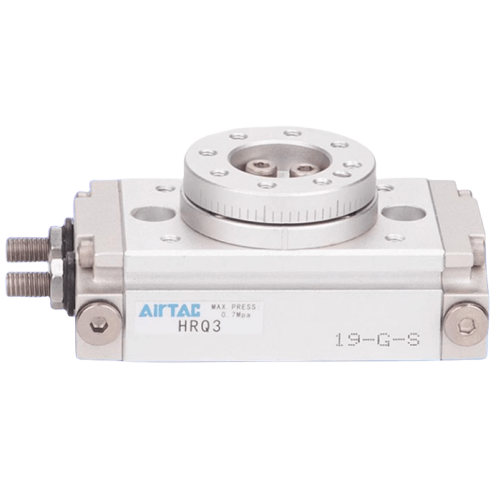

Airtac B52-HRQ Copper-Free Rotary Cylinder B52-HRQ200A
AirTAC B52-HRQ200A Non-Copper Rotary Cylinder Specifications
- Model: B52-HRQ200A
- Type: Non-copper rotary cylinder (180° rotation)
- Bore size: Ø200mm
- Stroke: Customizable (standard options: 50-500mm)
- Operating pressure: 0.05–0.8 MPa
- Temperature range: -20℃ to 80℃
- Body material: Aluminum alloy (copper-free design)
- Seal material: NBR with copper-free additives
- Buffer type: Adjustable pneumatic cushioning
- Mounting style: Flange mounting (ISO 15552 standard)
- Port size: 1/2" NPT (G3/8 optional)
- Rotation angle: 180°±5° (adjustable end positions)
- Repeat positioning accuracy: ±0.2°
- Weight: 28kg (without accessories)
- Dimensions: 600mm(L) × 220mm(W) × 220mm(H)
- Lubrication: Pre-lubricated (copper-free grease)
- Protection rating: IP54 (standard), IP67 optional
Heavy-duty rotary actuator engineered for copper-sensitive environments, featuring anti-corrosion treatment and precision angular positioning. The copper-free construction prevents catalytic reactions in oxygen-rich or medical applications. Integrated shock absorbers minimize end-impact vibration during 180° rotation cycles.
- Pharmaceutical production line material handling
- Oxygen generator valve switching mechanisms
- Food processing equipment positioners
- Semiconductor wafer transfer systems
- Automotive welding fixture rotation
Critical notes:
- Requires copper-free compressed air (use stainless steel piping)
- Lubrication must use specified copper-free grease (AIRTAC LK-22)
- Maximum angular velocity: 90°/sec at 0.5MPa
- Installation torque: 650N·m (use torque wrench for flange bolts)
| Property | Property Value |
|---|---|
| sku | B52-HRQ200A |
