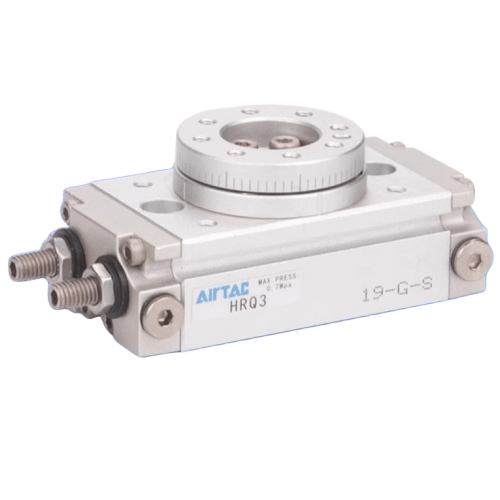

Airtac B52-HRQ Copper-Free Rotary Cylinder B52-HRQ20A
AirTAC B52-HRQ Copper-Free Rotary Cylinder B52-HRQ20A Specifications
- Model: B52-HRQ20A
- Type: Non-lube copper-free rotary cylinder
- Bore size: 20mm
- Stroke: 0°-190° adjustable rotation
- Operating pressure: 0.1–0.8 MPa
- Material: Stainless Steel (copper-free design) with NBR seals
- Port size: 1/8" NPT (G1/8 optional)
- Mounting: Standard flange/Foot mounting
- Cushioning: Adjustable pneumatic cushion
- Repeat accuracy: ±0.5° (typical)
- Temperature range: -10℃ to 80℃
- Corrosion resistance: IP54 standard
- Weight: 0.82kg (excluding accessories)
- Dimensions: 56mm(W) × 63mm(H) × 95mm(L)
Precision rotary actuator with anti-corrosion coating and zero copper content, engineered for contamination-sensitive environments. Features double-sealed bearings and self-lubricating guides requiring no external grease. Torque output reaches 3.2N·m at 0.6MPa. Compatible with ISO 15552 mounting standards.
- Semiconductor wafer handling robots
- Food packaging rotary indexers
- Pharmaceutical capsule filling machines
- Cleanroom valve actuators
- Medical device assembly systems
Installation note:
Maintain 0.5-1mm clearance between cylinder body and mounting surface to prevent torsion stress.
Use only copper-free pneumatic fittings (PPS/Stainless Steel recommended).
| Property | Property Value |
|---|---|
| sku | B52-HRQ20A |
