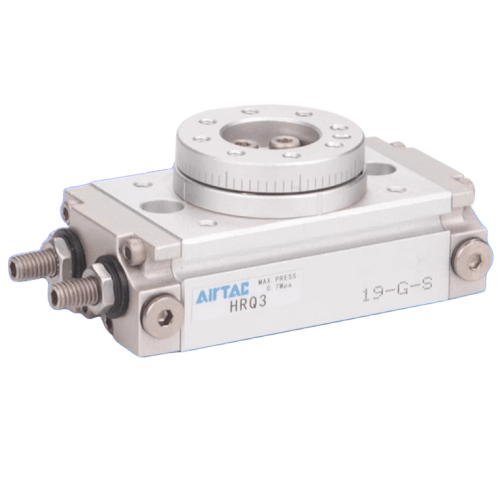

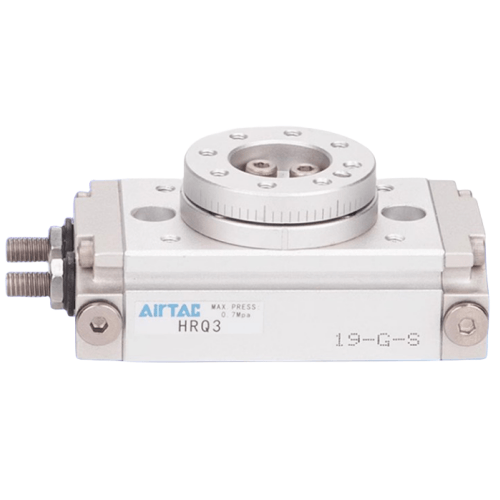

Airtac B52-HRQ Copper-Free Rotary Cylinder B52-HRQ30
AirTAC B52-HRQ30 Non-Copper Rotary Cylinder Specifications
- Model: B52-HRQ30
- Type: Non-copper rotating cylinder (copper-free construction)
- Bore size: 30mm
- Stroke: Standard 90° rotation (customizable angles available)
- Operating pressure: 0.1–0.7 MPa
- Torque output: 1.5–3.2 N·m (pressure-dependent)
- Rotation accuracy: ±0.5°
- Weight: 0.85 kg (dry, without accessories)
- Dimensions: 82mm(W) × 82mm(H) × 128mm(L)
- Body material: Anodized aluminum alloy
- Seal material: Copper-free HNBR compound
- Temperature range: -10℃ to 100℃
- Lubrication: Pre-lubricated (maintenance-free design)
- Mounting: Standard ISO 15552 front flange
- Air connection: M5×0.8 pneumatic ports
Environmentally optimized rotary actuator with copper-free construction, designed for applications requiring strict metal contamination control. Features precision-ground helical gear mechanism with zero-backlash engagement, achieving repeatable angular positioning. Optional magnetic sensor slots for position feedback integration.
- Semiconductor wafer handling robots
- Pharmaceutical packaging line actuators
- Food processing equipment (copper-restricted environments)
- Lithium battery production automation
- Cleanroom-compatible machinery
Installation guidelines:
Align mounting surface within 0.1mm flatness tolerance. Use copper-free
pneumatic fittings (stainless steel recommended). Perform 3-5 test cycles
at 0.3MPa before full operation. Avoid axial loads exceeding 50N.
- Dual-bearing support for enhanced torsional rigidity
- IP54 protection against particulate ingress
- Silent operation (<55dB at 0.5MPa)
- 10 million cycle durability (under rated conditions)
| Property | Property Value |
|---|---|
| sku | B52-HRQ30 |
