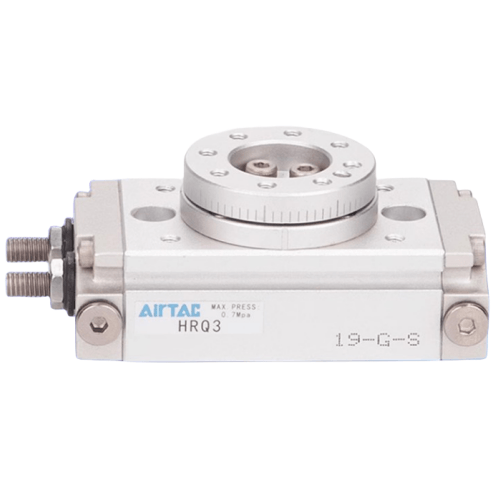

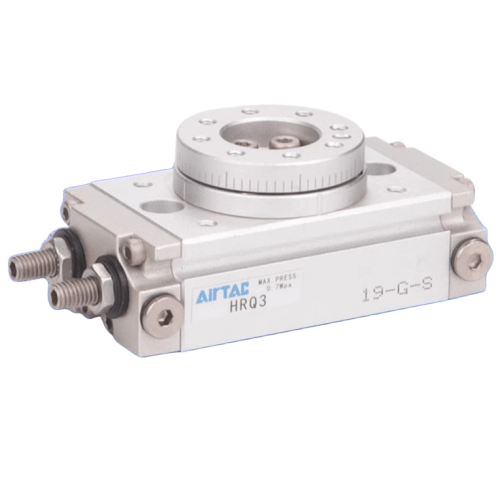

Airtac B52-HRQ Copper-Free Rotary Cylinder B52-HRQ50A
AirTAC B52-HRQ Series Non-Copper Rotary Cylinder (B52-HRQ50A) Specifications
- Model: B52-HRQ50A
- Type: Non-copper rotary cylinder with anti-corrosion design
- Bore size: 50mm
- Rotation angle: 0-190° adjustable
- Operating pressure: 0.1-0.8 MPa
- Torque output: 2.5-12.5 N·m (pressure-dependent)
- Piston stroke: 90° rotation per 25mm linear movement
- Port size: M5x0.8 (standard), G1/8 optional
- Weight: 1.8 kg (without accessories)
- Dimensions: 156mm(L) × 50mm(W) × 50mm(H)
- Temperature range: -10℃ to 80℃
- Seal material: HNBR with fluorine coating
- Body material: Anodized aluminum alloy (copper-free)
- Repeat accuracy: ±0.5°
- Protection rating: IP54 (standard), IP67 optional
Precision-engineered rotary actuator featuring copper-free construction for corrosive environments. The double-helical gear design ensures smooth rotation with minimal backlash. Includes adjustable mechanical stoppers for angle customization and shock-absorbing cushions for noise reduction (≤65dB). Compatible with ISO 15552 mounting standards.
- Semiconductor wafer handling robots
- Pharmaceutical capsule sorting machines
- Food packaging line gripper rotation
- Battery production line electrode positioning
- Solar panel lamination equipment
Installation note:
Lubricate gear teeth with silicone-free grease (ISO VG32 equivalent) during assembly.
Maximum lateral load: 50N at 50mm from flange. For vertical mounting, use auxiliary support brackets.
