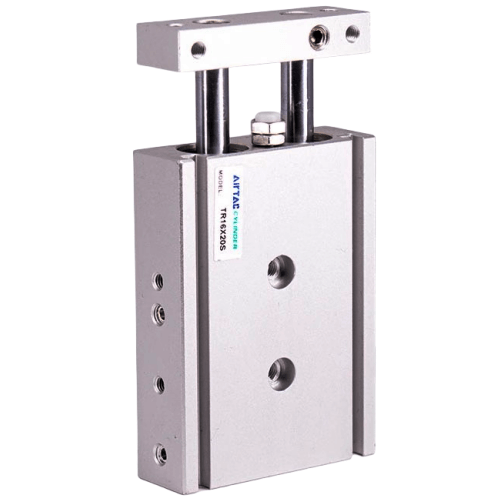

Airtac B52-TR Copper-Free Twin Rod Cylinder B52-TR10X15S
AirTAC B52-TR Series Copper-Free Double Rod Cylinder: B52-TR10X15S
- Model Code: B52-TR10X15S
- Bore Size: 10mm (0.39")
- Stroke: 15mm (0.59")
- Operating Pressure: 0.05–1.0 MPa (7–145 PSI)
- Temperature Range: -20℃ to 80℃ (-4°F to 176°F)
- Port Size: M5×0.8 (Standard) / NPT1/8 (Optional)
- Mounting Type: Basic front flange
- Cylinder Material: Copper-free aluminum alloy (A6063-T5)
- Rod Material: Stainless steel (SUS304)
- Buffer Type: Adjustable rubber cushion
- Rod End Type: Double extended rods with male M5 threads
- Seal Material: NBR (Nitrile) with fluorine resin coating
- Protection Class: IP40 (Dust protected)
- Lubrication: Pre-lubricated (ISO VG32 equivalent)
- Weight: 0.25kg (0.55lbs)
- Dimensions:
- Total Length (L): 97mm (Stroke 15mm + Body 82mm)
- Body Width (W): 20mm (0.79")
- Height with Rods (H): 32mm (1.26")
Copper-free design prevents contamination in sensitive environments requiring strict metal ion control. Dual rod configuration ensures balanced force distribution and enhanced stability during reciprocation. Features precision-ground rods with chromium plating (3-5μm thickness) for wear resistance. Requires filtered air (5-40μm) with dew point -25℃ below ambient.
- Semiconductor manufacturing equipment
- Food-grade packaging machinery (copper-free compliance)
- Pharmaceutical production lines
- Cleanroom automation systems
- Laboratory analytical instruments
- Medical device actuators
Installation Protocol:
Use only copper-free piping (stainless steel or polyurethane recommended).
Maintain 0.5mm minimum lateral alignment tolerance during mounting.
For vertical installations, add rod end supports for strokes >20mm.
| Property | Property Value |
|---|---|
| sku | B52-TR10X15S |
