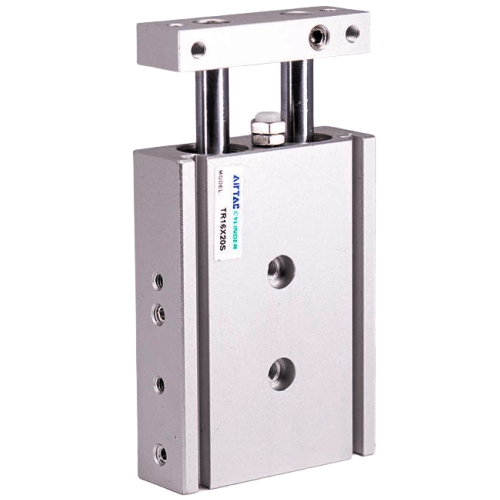

Airtac B52-TR Copper-Free Twin Rod Cylinder B52-TR25X10S
AirTAC B52-TR Series Copper-Free Twin Rod Cylinder B52-TR25X10S Specifications
- Model: B52-TR25X10S
- Type: Double-acting twin rod cylinder (copper-free construction)
- Bore size: Ø25mm
- Stroke: 10mm (customizable: 10-300mm)
- Rod type: Chrome-plated stainless steel dual rods
- Operating pressure: 0.05-1.0 MPa
- Temperature range: -20℃ to 80℃
- Cushioning: Adjustable elastic cushioning + shock absorber
- Seal material: NBR/FKM optional (standard: copper-free NBR)
- Mounting: Standard ISO/VDMA mounting slots
- Port size: M5x0.8 (dual ports on both ends)
- Speed range: 50-750 mm/s
- Protection rating: IP54 (standard) / IP67 (optional wiper upgrade)
- Weight: 0.85kg ±5%
- Dimensions: 157mm(L) × 58mm(W) × 43mm(H) (stroke-dependent)
Corrosion-resistant twin rod cylinder specifically engineered for copper-sensitive environments. Features dual piston rods for enhanced moment resistance and precision alignment. The copper-free construction (body: anodized aluminum alloy, seals: non-copper NBR) prevents contamination in sensitive applications. Integrated magnetic sensor slots enable position feedback when used with compatible sensors.
- Chemical processing equipment (acid/alkaline resistant)
- Semiconductor manufacturing cleanrooms
- Food & beverage production lines (FDA-compliant variant available)
- Precision alignment in CNC tool changers
- Pharmaceutical packaging machinery
Installation guidelines:
Use only copper-free lubricants (PAG or PFPE-based). Avoid side load exceeding 15N.
For vertical mounting, install rod-down orientation to prevent moisture accumulation.
Recommended maintenance: Clean rods weekly in high-contamination environments.
| Property | Property Value |
|---|---|
| sku | B52-TR25X10S |
