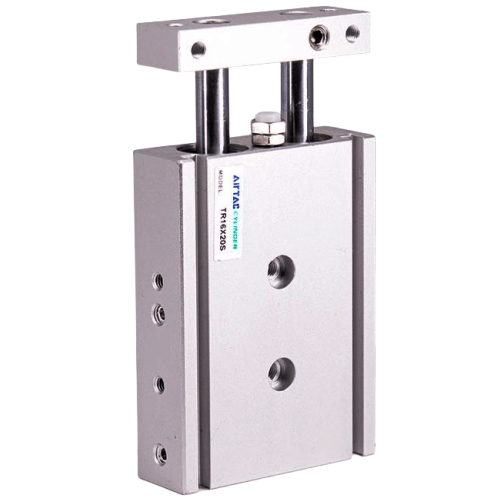

Airtac B52-TR Copper-Free Twin Rod Cylinder B52-TR25X20S
AirTAC B52-TR25X20S Non-Copper Biaxial Cylinder Specifications
- Model: B52-TR25X20S
- Type: Non-copper biaxial cylinder (double rod)
- Bore size: 25mm
- Stroke: 20mm
- Operation pressure: 0.15–0.8 MPa
- Piston rod diameter: 10mm (both ends)
- Rod thread: M10×1.25 (ISO standard)
- Mounting style: Front flange/Foot mount (optional accessories)
- Cushioning: Adjustable air cushion at both ends
- Material: Aluminum alloy barrel, CRMo steel piston rod
- Seal material: NBR + Polyurethane (copper-free formula)
- Temperature range: -10℃ to 80℃
- Weight: 1.85kg ±3%
- Dimensions: 185mm(L) × 50mm(W) × 62mm(H)
- Port size: G1/8 (ISO228 standard)
- Lubrication: Pre-lubricated (non-copper grease)
- Repeat accuracy: ±0.2mm
- Max lateral load: 25N
Precision-engineered double-rod cylinder featuring copper-free construction for chemical compatibility, with chromium-plated rods for corrosion resistance. The symmetrical dual-piston design ensures balanced thrust and minimal lateral deflection during operation. Integrated magnet slots allow sensor mounting for position feedback.
- Pharmaceutical packaging lines (copper-free requirement)
- Electroplating equipment handling corrosive vapors
- Semiconductor wafer handling robots
- Precision clamping fixtures with dual-side force output
- Chemical processing valve actuators
Installation notes:
Use PTFE-based lubricants only. Avoid side load exceeding 5% of max thrust.
For vertical mounting, install rod lock nuts facing downward. Allow 30mm
clearance behind cylinder for full stroke extension. Pre-charge lubricator
with ISO VG32 turbine oil if used in dry environments.
