Airtac BKC Bulkhead Lock Nut Union BKC0425-M3-S

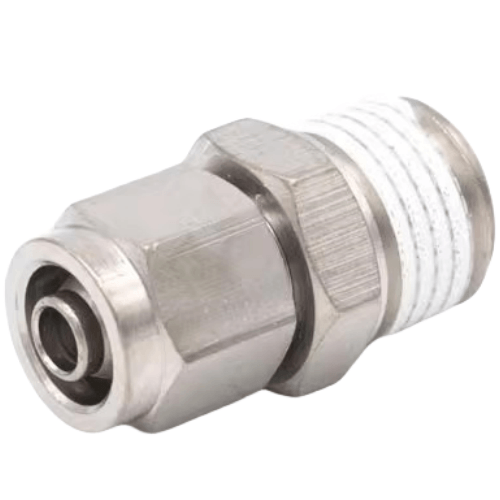

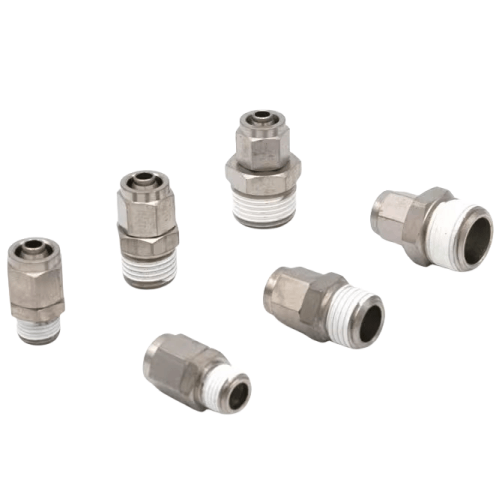

AirTAC BKC0425-M3-S Locknut Straight Connector Specifications
- Model: BKC0425-M3-S
- Type: Locknut-style straight pneumatic connector
- Thread specification: M3×0.5 (external thread)
- Tube compatibility: Ø4mm OD × 2.5mm ID pneumatic tubing
- Material: Nickel-plated brass body
- Seal material: NBR (Nitrile) O-ring
- Max working pressure: 1.0 MPa (145 psi)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Proof pressure: 1.5 MPa
- Weight: 8.2g ±0.3g
- Dimensions: 28mm(L) × 8mm(D) × 8mm(W)
- Surface treatment: Electroless nickel plating (5-8μm)
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Certification: RoHS compliant
High-density precision connector featuring a dual-locking mechanism with spring-loaded collet and threaded locknut for vibration-resistant tubing retention. The tapered seat design ensures bubble-tight sealing even under pressure fluctuations. Includes built-in flow optimization channels to minimize turbulence.
- Miniature pneumatic circuit connections in robotics
- Medical device gas delivery systems
- Semiconductor manufacturing equipment
- High-cycle automation tooling (e.g., pick-and-place units)
- Portable analytical instruments requiring compact plumbing
Installation protocol:
Insert tube until it bottoms out, then tighten locknut 1.25-1.75 turns using 8mm wrench.
Avoid overtightening - maximum torque 0.25N·m. Perform pressure test at 120% of system
operating pressure after installation.
