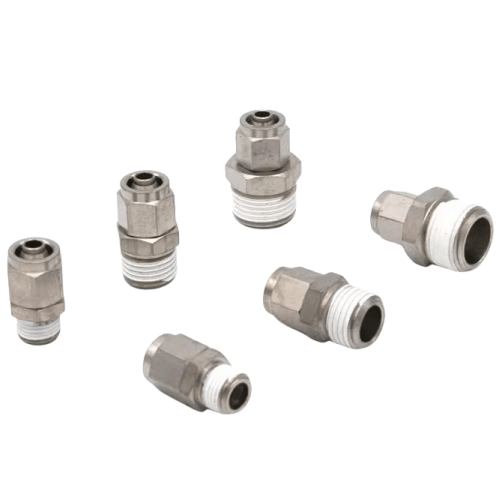

Airtac BKC Bulkhead Lock Nut Union BKC0806-02-S

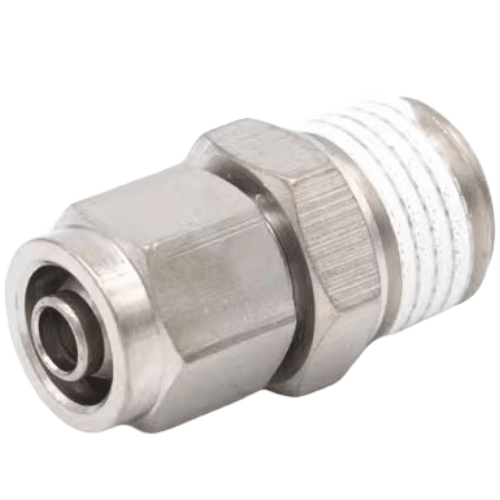

AirTAC BKC0806-02-S Locknut Straight Connector Specifications
- Model: BKC0806-02-S
- Thread Type: M5 × 0.8 female thread (both ends)
- Tube OD Compatibility: Ø8mm (PU/Nylon) & Ø6mm (PTFE)
- Material: Lead-free brass CW617N
- Surface Treatment: Electroless nickel plating (5-8μm)
- Seal Material: HNBR (Hydrogenated Nitrile) with anti-extrusion ring
- Max Working Pressure: 1.5 MPa (15 bar)
- Temperature Range: -20℃ to 120℃ (continuous use)
- Proof Pressure: 2.25 MPa
- Burst Pressure: ≥3 MPa
- Vibration Resistance: 10-2000Hz, 1.5mm amplitude
- Weight: 28g ±1g
- Dimensions: 40mm(L) × 22mm(W) × 22mm(H)
- Torque Specification: 1.2-1.5 N·m (assembly torque)
- Corrosion Rating: 96hrs neutral salt spray test passed
Heavy-duty pneumatic connector with dual-material sealing system, featuring a patented anti-vibration locknut design that prevents loosening under high-frequency pulsation. The precision-machined internal flow path ensures ≤0.15 MPa pressure drop at max flow rate (300 NL/min). Compatible with ISO 8434-1 standard fittings.
- High-cycle pneumatic presses requiring vibration resistance
- Robotic arm end effector pneumatic circuits
- CNC machine tool coolant line connections
- Food processing equipment (NSF-certified material option)
- Semiconductor fab cleanroom pneumatic systems
Installation protocol:
Use two wrenches in counter-rotation during assembly - hold body with 22mm wrench
while tightening locknut with 17mm wrench. Perform pressure test at 1.1× working
pressure after installation. Re-torque after 50 operating cycles.
| Property | Property Value |
|---|---|
| sku | BKC0806-02-S |
