Airtac BPM Full Metal Panel Mount Straight Through Fitting BPM12
AirTAC BPM12 Full Metal Bulkhead Straight Threaded Fitting Specifications
- Model: BPM12
- Material: Brass (Nickel-plated) / Stainless Steel (SUS303 optional)
- Thread Standard: G1/8 (BSPP) / NPT1/8 optional
- Through-hole Diameter: 12mm (panel mounting hole)
- Pressure Range: 0.05-1.0 MPa
- Temperature Range: -20℃ to 120℃ (NBR seals) / -20℃ to 150℃ (FKM seals optional)
- Seal Material: Standard NBR / Optional FKM
- Weight: 18.5g ±0.5g (brass version)
- Dimensions: 28mm(Length) × 18mm(Hex Width) × 12mm(Thread OD)
- Installation Torque: 1.2-1.5 N·m (brass) / 2.0-2.5 N·m (stainless)
- Surface Treatment: Electroless nickel plating (≥5μm thickness)
- Leakage Rate: ≤0.1 NL/min @ 0.5 MPa

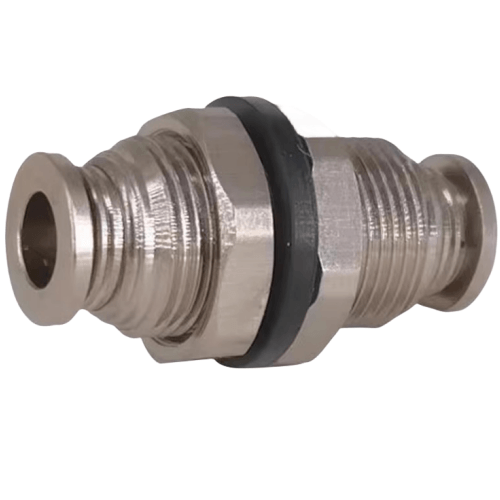

Heavy-duty bulkhead fitting with dual O-ring seals and anti-vibration structure, featuring a 6-flat wrench surface for secure panel mounting. The through-wall design eliminates external tubing runs, ideal for space-constrained pneumatic systems. Compatible with air, water, and light hydraulic fluids (consult factory for chemical compatibility).
- CNC machine tool pneumatic cabinets
- Semiconductor wafer handling equipment
- Mobile hydraulic control panels
- Food processing machinery (stainless steel version)
- Laboratory instrument gas distribution
Installation protocol:
Apply thread sealant on male threads (PT/NPT versions only).
Use backup wrench on hex flats during assembly.
Maximum 3 full rotations after seal contact.
Pressure test recommended after installation.
| Property | Property Value |
|---|---|
| sku | BPM12 |
