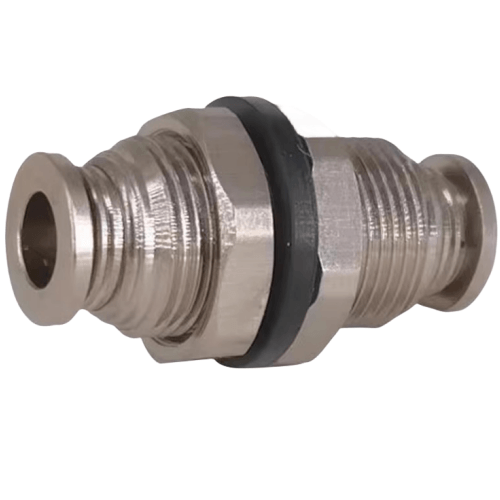

Airtac BPM Full Metal Panel Mount Straight Through Fitting BPM6
$6.89
Regular price
$14.39
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
BPM6
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC BPM6 Full Metal Bulkhead Straight Fitting Specifications
- Model: BPM6
- Type: Through-panel straight connector (male thread both ends)
- Thread standard: Metric (M6×1)
- Material: Brass with nickel plating
- Seal material: NBR O-ring
- Working pressure: 0.05-1.5 MPa
- Temperature range: -20℃ to 80℃
- Installation type: Panel-mounted (requires 8.5mm panel hole)
- Weight: ~25g
- Dimensions: 18mm(Ø) × 18mm(Panel contact length) × 21mm(Total length)
- Surface hardness: HV200-250
- Pressure test: 2.25 MPa (150% of max rated pressure)
Heavy-duty bulkhead fitting featuring full-metal construction with corrosion-resistant nickel plating. The dual O-ring design ensures leak-free connections across temperature fluctuations. Hexagonal base allows secure wrench tightening during panel installation.
Typical Applications:
- Industrial machinery control panels
- Pneumatic cabinet pass-through connections
- CNC equipment air line distribution
- Food processing equipment (NSF-compliant version available)
- Laboratory instrument gas routing
Installation guidelines:
Apply 1.5-2 wraps of PTFE tape on male threads. Tighten with 4-6 N·m torque using
a 14mm wrench. Always install O-rings dry without lubrication. For vibration-prone
environments, use thread-locking adhesive on panel nut.
| Property | Property Value |
|---|---|
| sku | BPM6 |
