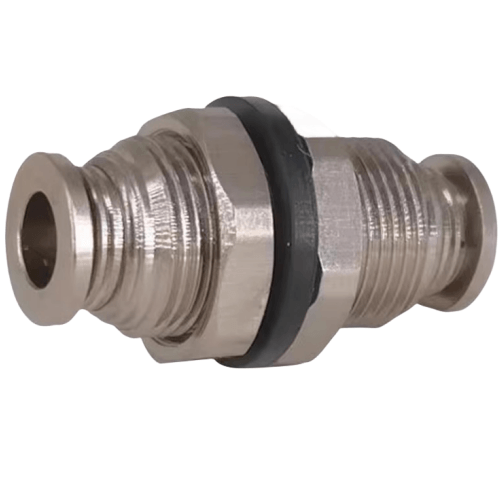

Airtac BPM Full Metal Panel Mount Straight Through Fitting BPM8
AirTAC BPM8 All-Metal Bulkhead Straight Threaded Connector Specifications
- Model: BPM8 Series
- Material: Stainless steel (SUS303) body + brass nut
- Thread type: G1/8 (BSPP) female threads both ends
- Through-hole diameter: Φ8.5mm mounting panel hole
- Pressure rating: 0-1.0 MPa (145 psi)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Seal material: NBR O-ring (standard), FKM optional
- Surface treatment: Passivation + electropolishing
- Installation torque: 8-10 N·m (71-89 lbf·in)
- Weight: 28g ±0.5g
- Dimensions: 20mm(Length) × 22mm(Width) × 18mm(Height)
- Vibration resistance: 10-2000Hz, 20G acceleration
Heavy-duty bulkhead connector featuring triple-sealing structure (metal-to-metal seal + dual O-rings) for leak-proof performance in high-vibration environments. The through-panel design enables compact piping layouts while maintaining accessibility for maintenance. Chrome-plated wrench flats prevent tool slippage during installation.
- Hydraulic power unit manifold connections
- CNC machine tool coolant line penetrations
- Food processing equipment steam line passthroughs
- Semiconductor fab gas distribution systems
- Robotic arm pneumatic circuit interfaces
Installation protocol:
Apply PTFE tape on male threads using clockwise winding pattern.
Use backup wrench on hex body during tightening to prevent rotation.
Torque monitoring recommended for batch assembly consistency.
Compatibility note:
Not suitable for ultrapure media applications.
For oxygen systems, specify degreased version (BPM8-DG suffix).
| Property | Property Value |
|---|---|
| sku | BPM8 |
