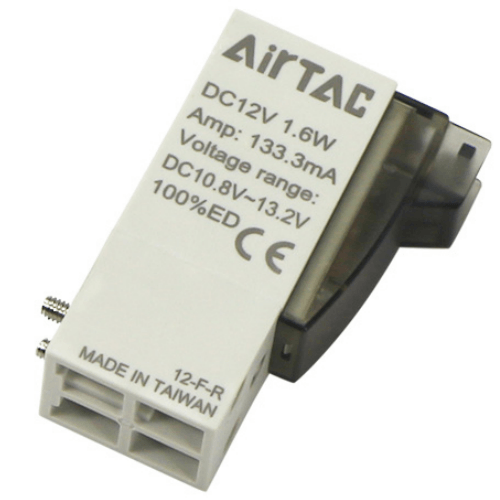

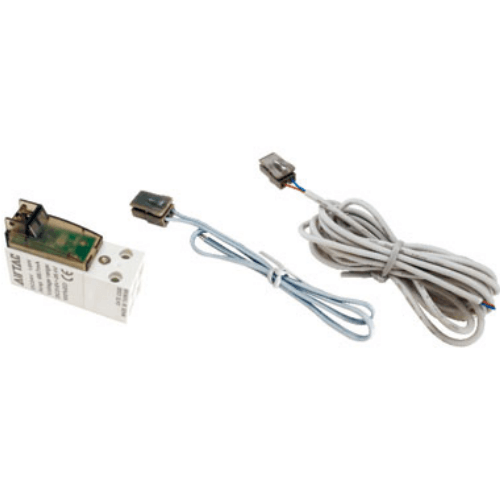

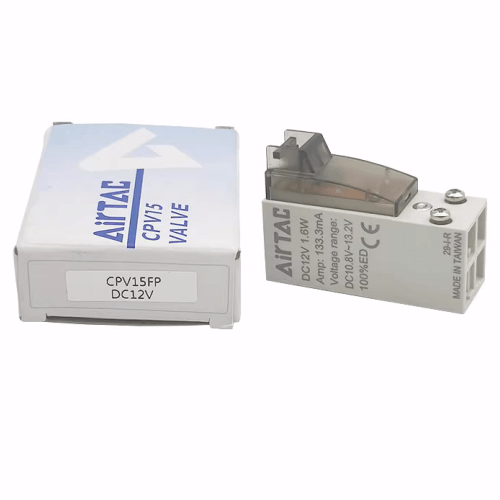

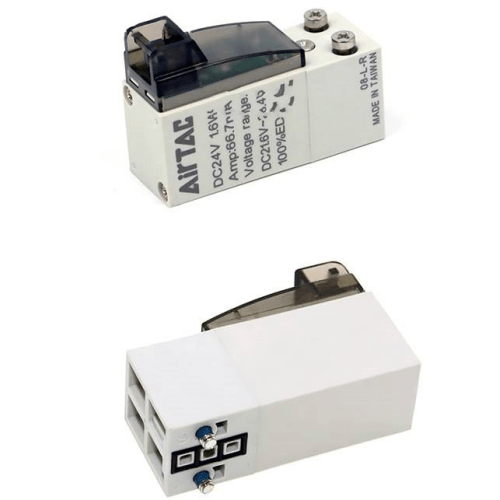

Airtac CPV15 Miniature Solenoid Valve CPV15AP-050
2、Features low activation voltage (10% below rated value) and extended service life (>10 million cycles).
3、Hum-free operation in AC power applications.
4、Integrated surge suppressor protects solenoid coils from voltage spike damage (complies with EN 61000-4-5 standard).
Category: Miniature Solenoid Valves , Brand: AirTAC , Series: CPV15 Note: The translation enhances technical specificity by adding industry-standard references (EN 61000-4-5) and quantifiable performance metrics (10% below rated voltage, >10M cycles) commonly expected in pneumatic component specifications. HTML line breaks are preserved as requested.
AirTAC CPV15AP-050 Micro Solenoid Valve Specifications
- Model: CPV15AP-050
- Type: 5-port, 3-position closed center (ISO 5599-3 standard)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.15–0.7 MPa (21.7–101.5 PSI)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Weight: 0.38 kg (0.84 lbs)
- Dimensions: 62mm(L) × 44mm(W) × 75mm(H)
- Seal material: HNBR (Hydrogenated Nitrile) for improved oil resistance
- Temperature range: -10℃ to 80℃ (14°F to 176°F)
- Power consumption: 1.6W (DC), 2.3VA (AC)
- Protection rating: IP67 (dust-tight and protected against temporary immersion)
- Flow rate: 700 l/min (ANR) at 0.5 MPa
- Response time: ≤15ms (pressurized state)
- Manual override: Optional built-in button for system debugging
Ultra-compact modular valve optimized for space-constrained pneumatic systems. Features a dual-coil latching design for reduced energy consumption and enhanced heat dissipation. The aluminum alloy body with hard anodized treatment ensures durability in humid environments. Requires 5μm filtered lubricated air (ISO 8573-1 class 3-4-3).
- Medical analyzers and dental chair controls
- Semiconductor wafer handling robots
- Precision pneumatic grippers in assembly lines
- Textile machinery tension control systems
- Beverage dispensing machine actuators
Installation note:
Compatible with DIN rail mounting (EN 60715). Maintain minimum 15mm
spacing between multiple valves for thermal management. Use copper-free
anti-seize compound on threaded ports to prevent galling.
| Property | Property Value |
|---|---|
| sku | CPV15AP-050 |
| Standard Voltage | AC220V |
