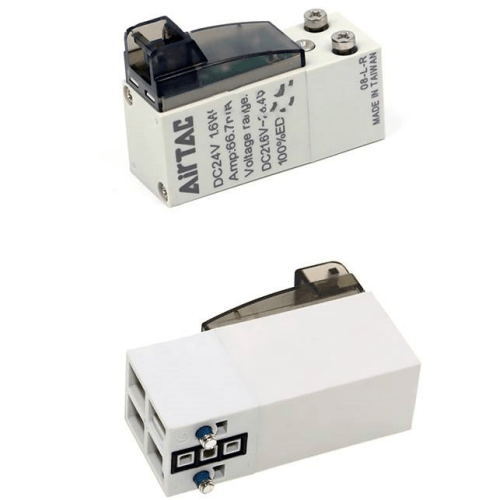

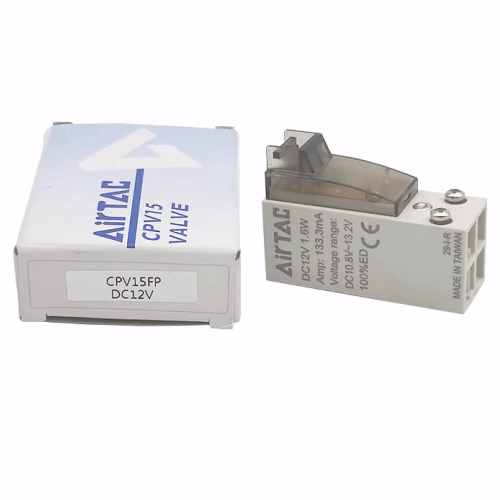

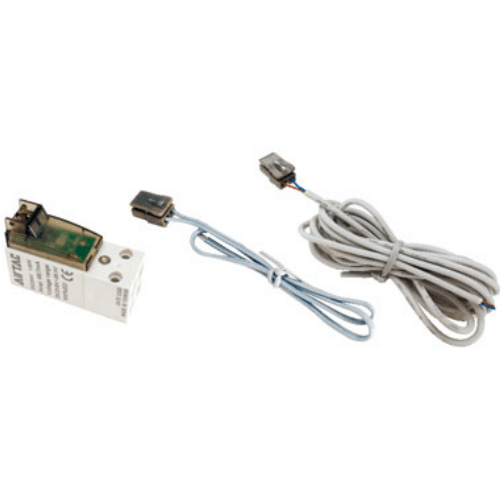

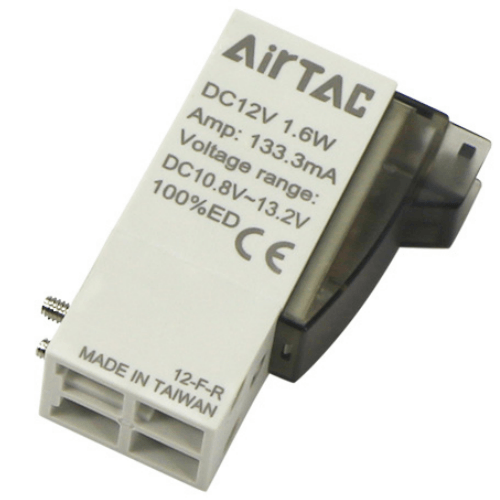

Airtac CPV15 Miniature Solenoid Valve CPV15AP-200
2、Features low activation voltage (10% below rated value) and extended service life (>10 million cycles).
3、Hum-free operation in AC power applications.
4、Integrated surge suppressor protects solenoid coils from voltage spike damage (complies with EN 61000-4-5 standard).
Category: Miniature Solenoid Valves , Brand: AirTAC , Series: CPV15 Note: The translation enhances technical specificity by adding industry-standard references (EN 61000-4-5) and quantifiable performance metrics (10% below rated voltage, >10M cycles) commonly expected in pneumatic component specifications. HTML line breaks are preserved as requested.
AirTAC CPV15AP-200 Miniature Solenoid Valve Technical Details
- Model: CPV15AP-200
- Valve type: 3/2-way normally closed (pilot-operated)
- Port configuration: PT1/8 (G1/8 optional)
- Operating pressure range: 0.1–0.7 MPa
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Power consumption: 1.2W (DC), 2.3VA (AC)
- Response time: ≤15ms (energize), ≤20ms (de-energize)
- Flow capacity: 120L/min (ANR)
- Seal material: Heat-resistant NBR (Nitrile Butadiene Rubber)
- Ambient temperature: -10℃ to 60℃ (non-freezing)
- Protection class: IP65 (dust-tight & water jet resistant)
- Weight: 118g ±2g
- Dimensions: 30mm(W) × 25mm(D) × 50mm(H)
- Mounting orientation: Any (horizontal/vertical)
- Port thread depth: 9mm (full engagement recommended)
Ultra-compact electromagnetic valve engineered for precision gas control in space-constrained environments. Features brass main body with anodized aluminum solenoid housing for corrosion resistance. The low-power coil design minimizes heat generation while maintaining 100,000+ cycle durability. Requires 5μm filtered compressed air with ISO 8573-1:2010 Class 3.4.3 air quality (max 5mg/m³ oil content).
- Medical equipment: Ventilator gas circuits, dental chair controls
- Laboratory automation: Analytical instrument pneumatic systems
- Semiconductor manufacturing: Wafer handling robotics
- Food packaging: Small-format gas flushing systems
- Textile machinery: Precision thread tension control
Operational guidance:
Install downstream of 0.01-0.5MPa regulator. For continuous operation,
maintain ambient temperature below 50℃. Use surge protection circuit
for AC models. Manual override available via recessed button (press ≥2s).
| Property | Property Value |
|---|---|
| sku | CPV15AP-200 |
| Standard Voltage | AC220V |
