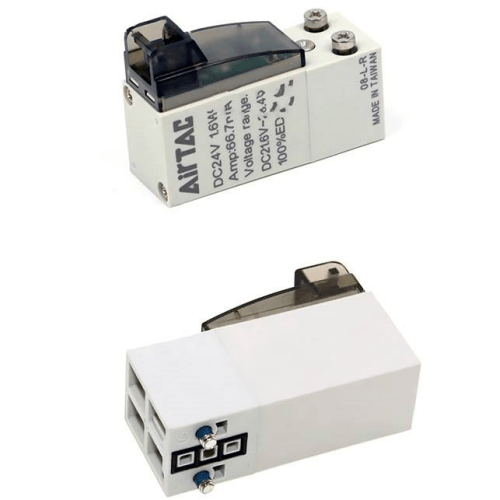

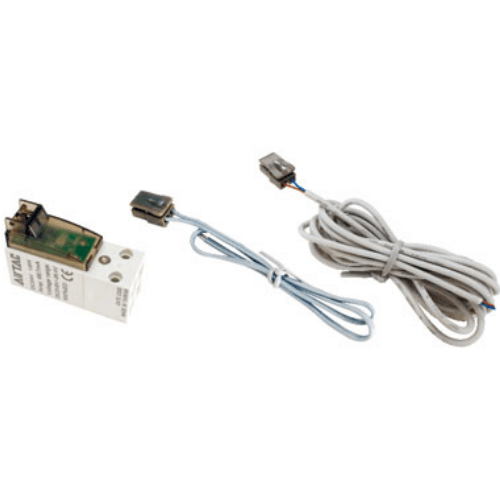

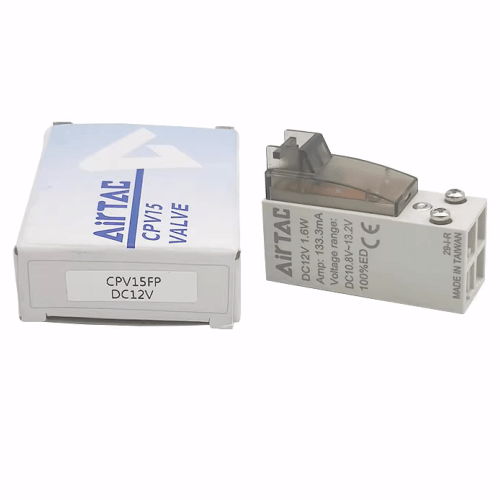

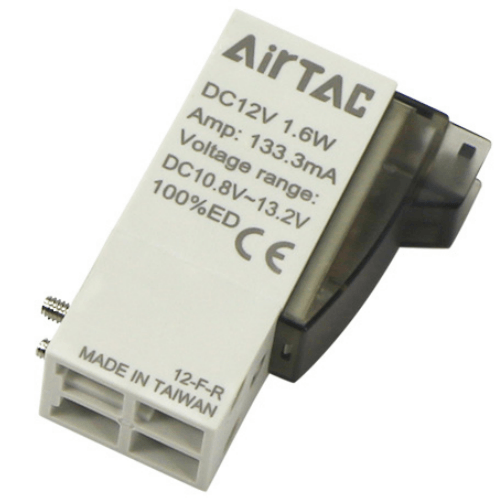

Airtac CPV15 Miniature Solenoid Valve CPV15BP
2、Features low activation voltage (10% below rated value) and extended service life (>10 million cycles).
3、Hum-free operation in AC power applications.
4、Integrated surge suppressor protects solenoid coils from voltage spike damage (complies with EN 61000-4-5 standard).
Category: Miniature Solenoid Valves , Brand: AirTAC , Series: CPV15 Note: The translation enhances technical specificity by adding industry-standard references (EN 61000-4-5) and quantifiable performance metrics (10% below rated voltage, >10M cycles) commonly expected in pneumatic component specifications. HTML line breaks are preserved as requested.
AirTAC CPV15BP Miniature Solenoid Valve Technical Details
- Model: CPV15BP
- Type: 3/2-way normally closed (direct-acting)
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure range: 0.05–0.7 MPa
- Maximum pressure: 1.0 MPa
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Power consumption: 1.2W (DC), 2.5VA (AC)
- Response time: ≤15ms (open), ≤10ms (close)
- Weight: 53g ±2g
- Dimensions: 38mm(L) × 24mm(W) × 25mm(H)
- Body material: Thermoplastic PBT+GF
- Seal material: Heat-resistant NBR (Nitrile)
- Fluid temperature range: -5℃ to 80℃
- Ambient temperature: -5℃ to 50℃
- Protection class: IP67 (dust/water resistant)
- Port orientation: Horizontal/vertical (bidirectional mounting)
The CPV15BP micro solenoid valve features ultra-compact dimensions with enhanced flow efficiency (Cv=0.12). Its dual-coil structure prevents overheating during continuous operation, while the direct-acting mechanism ensures reliable switching without minimum pressure requirements. The valve incorporates arc suppression circuits for extended electrical life (>10 million cycles). Requires 5μm filtered dry air with ISO 8573-1:2010 class 3.2.3 air quality.
- Portable medical analyzers and dental equipment
- Semiconductor wafer handling robots
- Precision pneumatic dispensing systems
- Textile machinery thread control
- Food packaging gas flow control
- 3D printer pneumatic subsystems
Installation guidelines:
For horizontal piping, orient coil upward at ≥15° angle to prevent debris accumulation.
Use copper-free compressed air. Manual override available via 2mm hex key (clockwise rotation for forced close).
| Property | Property Value |
|---|---|
| sku | CPV15BP |
| Standard Voltage | DC24V |
