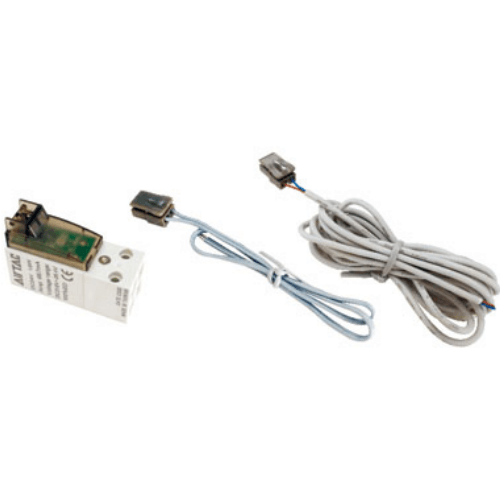

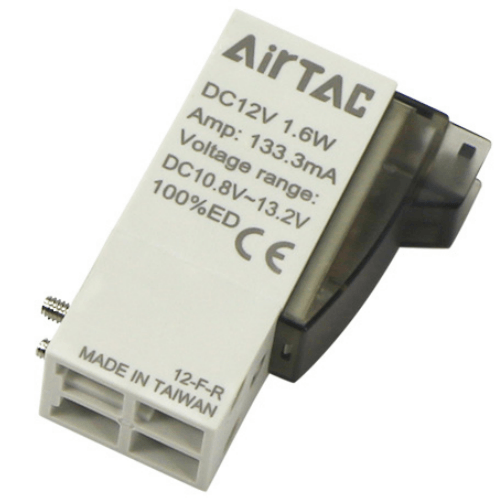

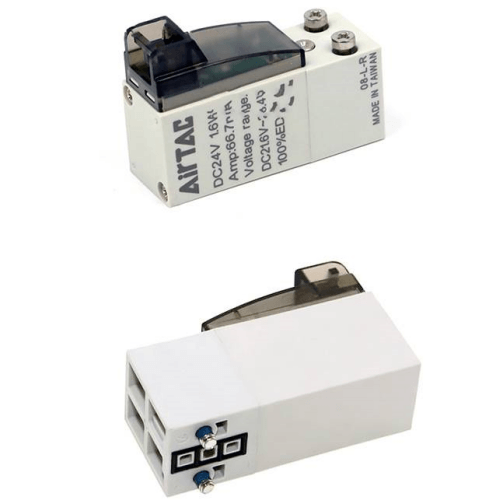

Airtac CPV15 Miniature Solenoid Valve CPV15BP-050
2、Features low activation voltage (10% below rated value) and extended service life (>10 million cycles).
3、Hum-free operation in AC power applications.
4、Integrated surge suppressor protects solenoid coils from voltage spike damage (complies with EN 61000-4-5 standard).
Category: Miniature Solenoid Valves , Brand: AirTAC , Series: CPV15 Note: The translation enhances technical specificity by adding industry-standard references (EN 61000-4-5) and quantifiable performance metrics (10% below rated voltage, >10M cycles) commonly expected in pneumatic component specifications. HTML line breaks are preserved as requested.
AirTAC CPV15BP-050 Micro Solenoid Valve Technical Details
- Model: CPV15BP-050
- Type: 5-port (5/2-way) monostable with spring return
- Port size: M5 (G1/8 equivalent flow rate)
- Thread standard: Metric (BSPP/NPT adapters available)
- Operating pressure: 0.1–1.0 MPa (14.5–145 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Power consumption: DC: 1.8W max | AC: 2.2VA max
- Response time: ≤15ms (at 0.5MPa)
- Flow coefficient (Cv): 0.12
- Seal material: Temperature-resistant FKM (Fluorocarbon Rubber)
- Ambient temperature: -10℃ to 60℃ (with 0% condensation)
- Weight: 108g ±2g (excluding connectors)
- Dimensions: 46mm(L) × 35mm(W) × 28mm(H)
- Protection class: IP67 (dustproof/immersion resistant)
- Mounting: Direct piping or sub-base (ISO 15407-2 compatible)
Ultra-compact pneumatic valve optimized for space-constrained automation systems. Features a copper-free aluminum alloy body with anti-vibration design and gold-plated terminals for enhanced corrosion resistance. Requires 5μm filtered lubricated air (ISO 8573-1:2010 Class 4.4.3) with recommended oil mist concentration of 1:30000.
- PCB handling robots for vacuum cup control
- Biopharmaceutical sterile filling systems
- Semiconductor wafer processing equipment
- Textile machinery thread tension regulation
- Food packaging portion control actuators
Operational guidance:
Maintain ambient humidity below 85% RH. For vertical installation,
use locking brackets (accessory code: BR-15V). Cycle frequency
should not exceed 5Hz in continuous operation. Perform monthly
manual override tests using the built-in manual operator.
| Property | Property Value |
|---|---|
| sku | CPV15BP-050 |
| Standard Voltage | DC24V |
