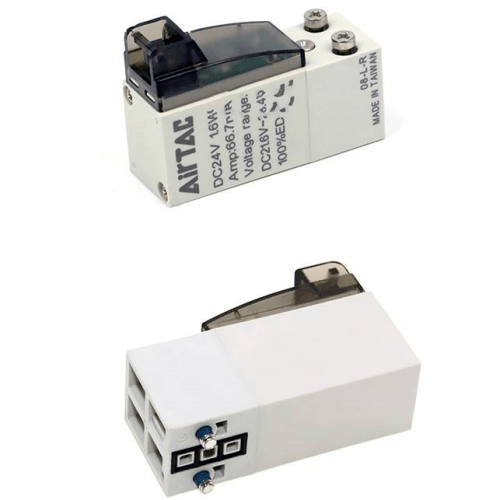

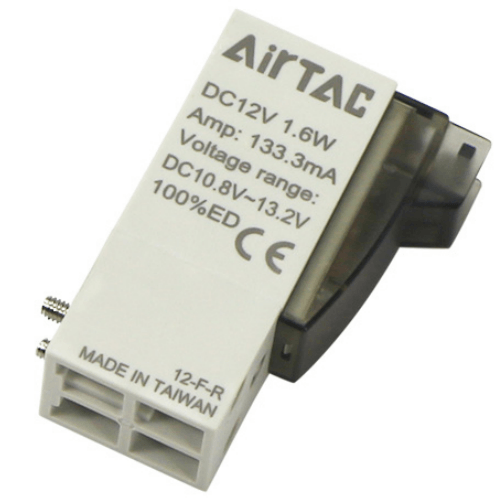

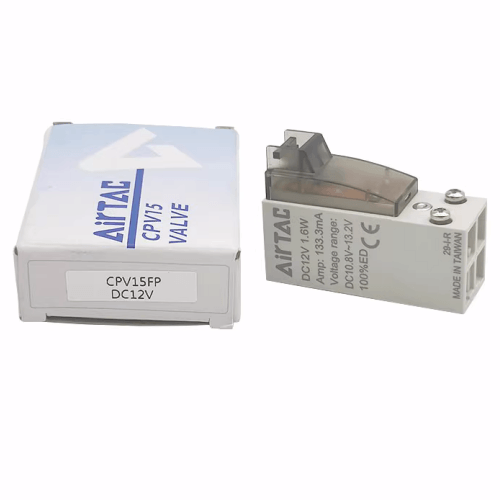

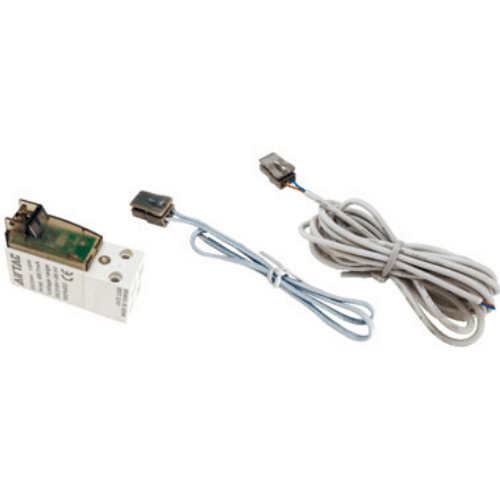

Airtac CPV15 Miniature Solenoid Valve CPV15CP-050
2、Features low activation voltage (10% below rated value) and extended service life (>10 million cycles).
3、Hum-free operation in AC power applications.
4、Integrated surge suppressor protects solenoid coils from voltage spike damage (complies with EN 61000-4-5 standard).
Category: Miniature Solenoid Valves , Brand: AirTAC , Series: CPV15 Note: The translation enhances technical specificity by adding industry-standard references (EN 61000-4-5) and quantifiable performance metrics (10% below rated voltage, >10M cycles) commonly expected in pneumatic component specifications. HTML line breaks are preserved as requested.
AirTAC CPV15CP-050 Miniature Solenoid Valve Technical Details
- Model: CPV15CP-050
- Valve type: 3/2-way direct-acting, normally closed
- Port configuration: PT1/8 (G1/8 optional)
- Effective area: 15mm²
- Operating pressure range: 0.1–0.7 MPa (14.5–101.5 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Power consumption: 1.2W (DC), 2.2VA (AC)
- Response time: ≤15ms (excitation), ≤10ms (de-energization)
- Flow coefficient (Cv): 0.15
- Seal material: Heat-resistant NBR (Nitrile) -70℃ to 120℃
- Ambient temperature: -5℃ to 60℃ (non-freezing)
- Protection class: IP65 (dust-tight & water jet resistant)
- Electrical connection: DIN43650 Form A connector
- Weight: 98g ±2g
- Dimensions: 39mm(L) × 25mm(W) × 35mm(H) (excluding connector)
- Service life: ≥10 million cycles (at rated conditions)
Ultra-compact electromagnetic valve engineered for precision gas/liquid control in space-constrained applications. Features brass body with anodized aluminum core tube for corrosion resistance. Includes manual override button for system debugging. Requires 5μm filtration (40μm max particle size) with lubricant-free air (NBR compatible with ISO VG32 oil if used).
- Portable medical analyzers (blood pressure monitors, gas mixers)
- Semiconductor wafer handling robotics
- Precision pneumatic grippers in assembly lines
- Beverage dispensing systems
- 3D printer pneumatic extruder controls
Installation guidelines:
Mount in vibration-free environments (max 1.5G vibration). Maintain ≥5mm clearance from heat sources.
For horizontal mounting, orient coil upward. Use copper-free anti-seize compound on threaded ports.
| Property | Property Value |
|---|---|
| sku | CPV15CP-050 |
| Standard Voltage | AC 110V |
