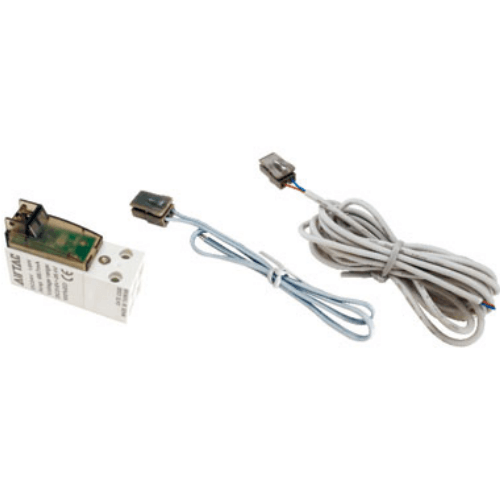

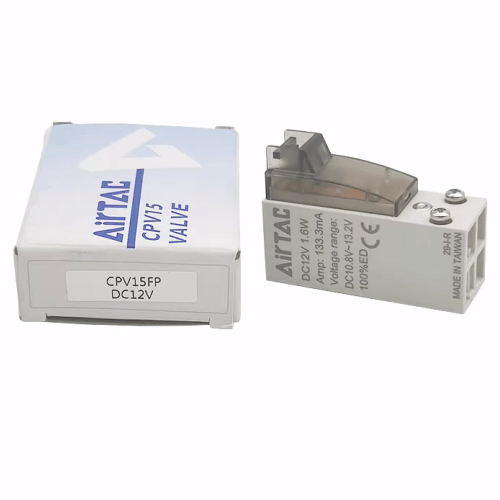

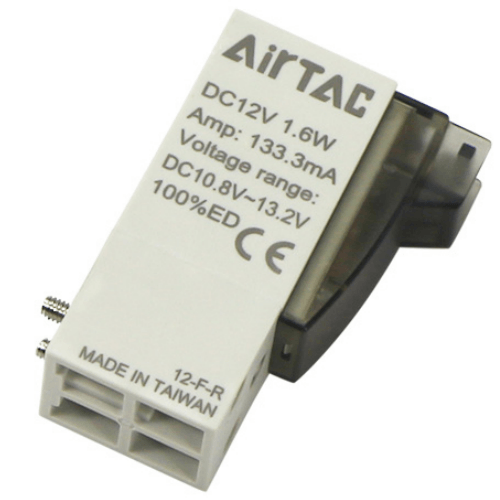

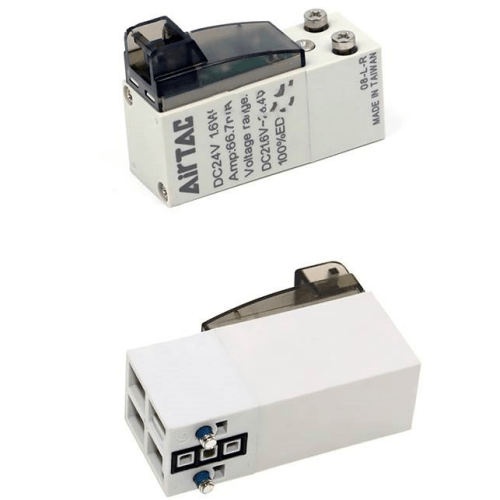

Airtac CPV15 Miniature Solenoid Valve CPV15CP-200
2、Features low activation voltage (10% below rated value) and extended service life (>10 million cycles).
3、Hum-free operation in AC power applications.
4、Integrated surge suppressor protects solenoid coils from voltage spike damage (complies with EN 61000-4-5 standard).
Category: Miniature Solenoid Valves , Brand: AirTAC , Series: CPV15 Note: The translation enhances technical specificity by adding industry-standard references (EN 61000-4-5) and quantifiable performance metrics (10% below rated voltage, >10M cycles) commonly expected in pneumatic component specifications. HTML line breaks are preserved as requested.
AirTAC CPV15CP-200 Miniature Solenoid Valve Specifications
- Model: CPV15CP-200
- Type: 2-position 3-way, normally closed (direct-acting)
- Port size: PT1/8 (ISO G1/8 thread equivalent)
- Operating pressure range: 0.1–0.7 MPa (14.5–101.5 PSI)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Power consumption: ≤1.5W (DC) / ≤2.3VA (AC)
- Response time: ≤15ms (actuation/deactivation)
- Flow coefficient: Cv 0.08 (Kv 0.09)
- Seal material: NBR (Nitrile Butadiene Rubber)
- Body material: Anodized aluminum alloy
- Temperature range: -20℃ to 80℃ (operating fluid/ambient)
- Protection rating: IP65 (dust-tight & water jet resistant)
- Weight: 120g ±5g (excluding connectors)
- Dimensions: 40mm(L) × 25mm(W) × 55mm(H) (port axis direction = length)
- Port thread depth: 8mm (fully engaged)
- Max operating cycles: 10 million (under rated conditions)
The CPV15CP-200 features a compact, lightweight design optimized for space-constrained pneumatic systems. Its direct-acting mechanism enables low-power operation without minimum pressure requirements, making it ideal for battery-powered applications. The hardened aluminum body and corrosion-resistant coatings ensure durability in humid environments. Requires 40μm filtered dry air and regular lubrication (every 5 million cycles).
- Portable medical devices (infusion pumps, ventilators)
- Semiconductor wafer handling robots
- Precision pneumatic grippers in assembly lines
- Laboratory analytical instrument gas control
- Textile machinery thread tension systems
- Beverage dispensing machines
Installation guidelines:
Compatible with DIN rail mounting or direct panel mounting. Maintain ≥5mm clearance from adjacent components for heat dissipation. For horizontal piping layouts, install exhaust port downward to prevent condensate accumulation. Use copper-free anti-seize compound on threads.
