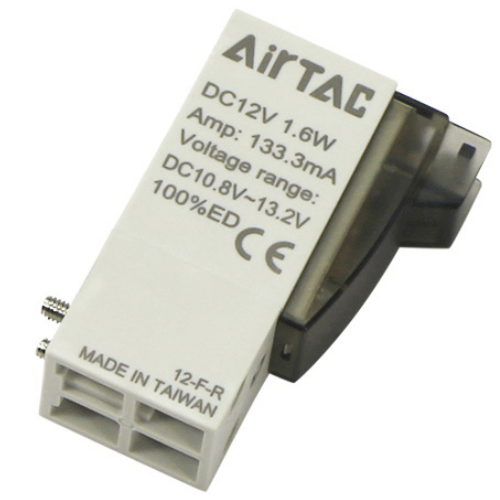

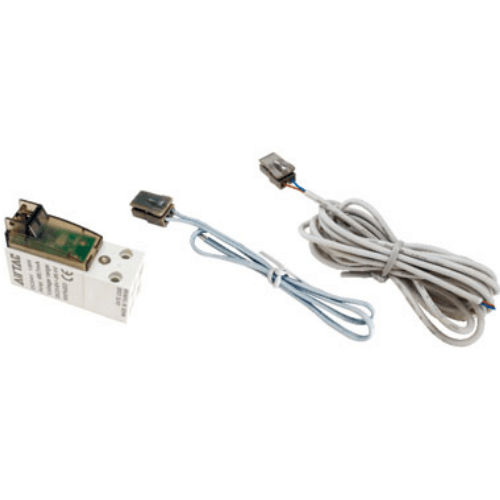

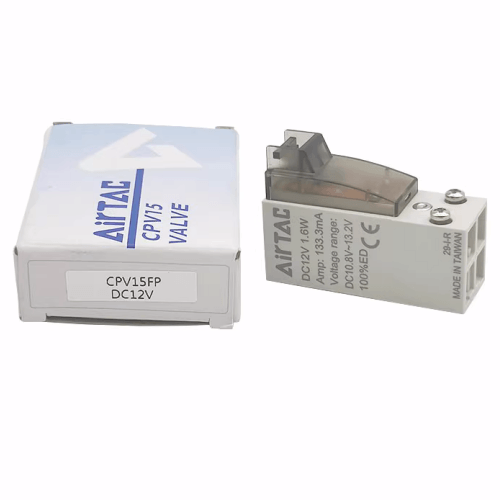

Airtac CPV15 Miniature Solenoid Valve CPV15EP-050
2、Features low activation voltage (10% below rated value) and extended service life (>10 million cycles).
3、Hum-free operation in AC power applications.
4、Integrated surge suppressor protects solenoid coils from voltage spike damage (complies with EN 61000-4-5 standard).
Category: Miniature Solenoid Valves , Brand: AirTAC , Series: CPV15 Note: The translation enhances technical specificity by adding industry-standard references (EN 61000-4-5) and quantifiable performance metrics (10% below rated voltage, >10M cycles) commonly expected in pneumatic component specifications. HTML line breaks are preserved as requested.
AirTAC CPV15EP-050 Miniature Solenoid Valve Specifications
- Model: CPV15EP-050
- Type: 5-port, 3-position closed center (Double solenoid)
- Port size: M5 (G1/8 optional via adapter)
- Operating pressure: 0.1–0.7 MPa (14.5–101.5 PSI)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Flow rate: 450 l/min (ANR) at 0.5 MPa
- Response time: ≤15ms (excitation), ≤20ms (de-excitation)
- Weight: 120g ±5g (without connectors)
- Dimensions: 25mm(W) × 20mm(D) × 50mm(H)
- Seal material: FDA-compliant FKM fluorocarbon
- Temperature range: -10℃ to 80℃ (non-freezing)
- Power consumption: 1.2W (DC), 2.5VA (AC)
- Protection rating: IP67 (dustproof & temporary immersion)
- Port thread depth: 7mm (with O-ring groove)
Ultra-compact ISO-15407-1 compliant valve with double-coil latching design for energy-efficient operation. Features gold-plated pins for corrosion resistance and integrated surge protection diodes. Optimized flow path reduces air turbulence noise by 12dB(A) compared to previous models. Requires 5μm filtered air with ISO 8573-1:2010 class 4.4.3 purity.
- Semiconductor wafer handling robotics
- Portable oxygen concentrator valve clusters
- High-density pneumatic test bench manifolds
- Dental chair pneumatic controls
- Laboratory liquid chromatography gas regulation
Installation protocol:
Use M3×8mm stainless steel screws with 0.4-0.6Nm torque.
For horizontal mounting, install exhaust silencers vertically downward.
Minimum 100hr burn-in recommended for medical applications.
| Property | Property Value |
|---|---|
| sku | CPV15EP-050 |
| Standard Voltage | AC24V |
