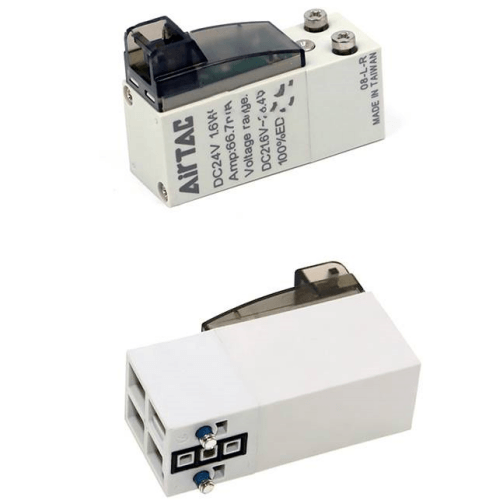

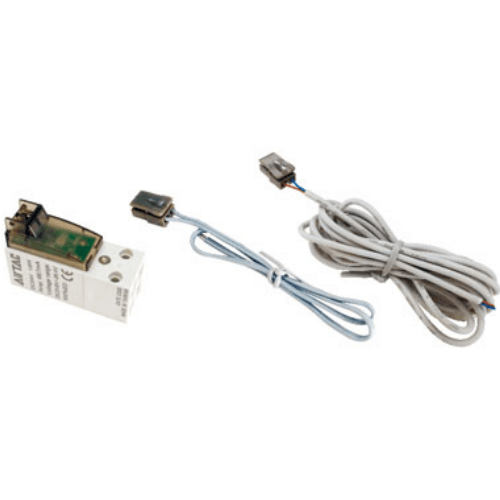

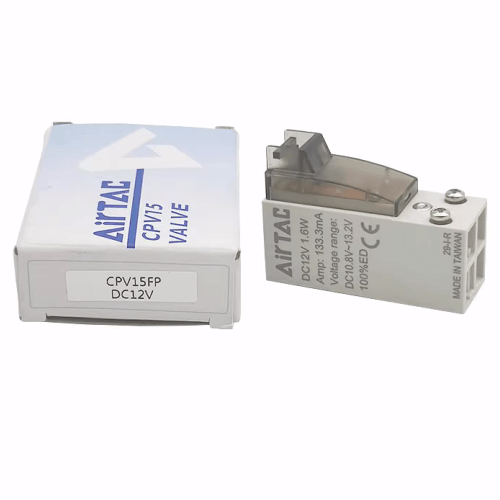

Airtac CPV15 Miniature Solenoid Valve CPV15EP-200
2、Features low activation voltage (10% below rated value) and extended service life (>10 million cycles).
3、Hum-free operation in AC power applications.
4、Integrated surge suppressor protects solenoid coils from voltage spike damage (complies with EN 61000-4-5 standard).
Category: Miniature Solenoid Valves , Brand: AirTAC , Series: CPV15 Note: The translation enhances technical specificity by adding industry-standard references (EN 61000-4-5) and quantifiable performance metrics (10% below rated voltage, >10M cycles) commonly expected in pneumatic component specifications. HTML line breaks are preserved as requested.
AirTAC CPV15EP-200 Miniature Solenoid Valve Technical Details
- Model: CPV15EP-200
- Valve type: 5/2-way direct acting (monostable)
- Port configuration: M5 threaded ports (ISO 228/1 standard)
- Effective area: 15mm²
- Operating pressure range: 0.1–0.7 MPa (14.5–101.5 PSI)
- Proof pressure: 1.05 MPa
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Power consumption: DC: 1.8W max | AC: 2.2VA max
- Response time: ≤15ms (exhaust to operation)
- Ambient temperature: -5℃ to 60℃ (no freezing)
- Fluid temperature: 0–60℃
- Seal material: Heat-resistant NBR (Nitrile Butadiene Rubber)
- Body material: Reinforced PBT resin (UL94 V-0 rated)
- Protection class: IP65 (dust-tight & protected against water jets)
- Weight: 135g ±2% (excluding connectors)
- Dimensions: 42mm(W) × 35mm(H) × 58mm(D) (1.65" × 1.38" × 2.28")
- Port thread depth: 7mm (minimum engagement)
- Manual override: Optional push-button type (adds 3mm to height)
Ultra-compact 5/2-way valve optimized for space-constrained automation systems. Features low power coil technology with overcurrent protection and spark-quenched arc design for extended service life. Requires 5μm filtration (40μm for intermittent use). Compatible with ISO 8573-1:2010 [3:4:3] class air quality.
- Desktop automation units in electronics assembly
- Robotic end-effector tool changers
- Portable medical analyzers
- Semiconductor wafer handling systems
- Textile machinery stitch regulators
- Laboratory sample handling robots
Installation guidelines:
Mount with vibration-damping gaskets in high-frequency environments.
Maintain minimum 5mm clearance below valve for condensate drainage.
Use copper-free lubricants if required (viscosity ≤25mm²/s).
| Property | Property Value |
|---|---|
| sku | CPV15EP-200 |
| Standard Voltage | AC24V |
