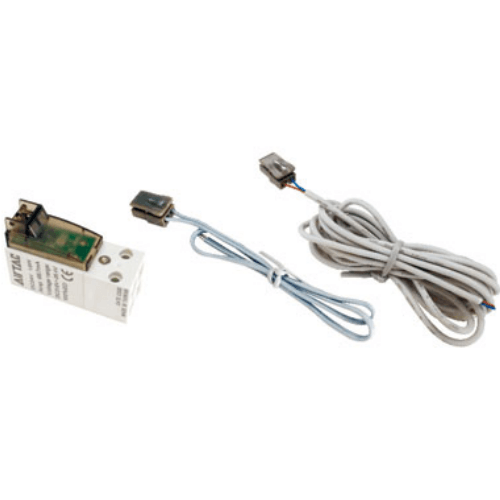

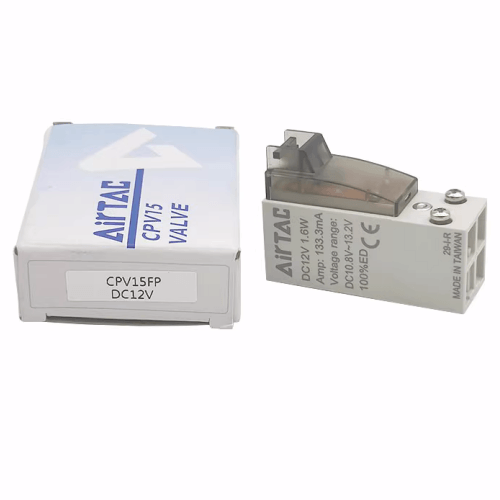

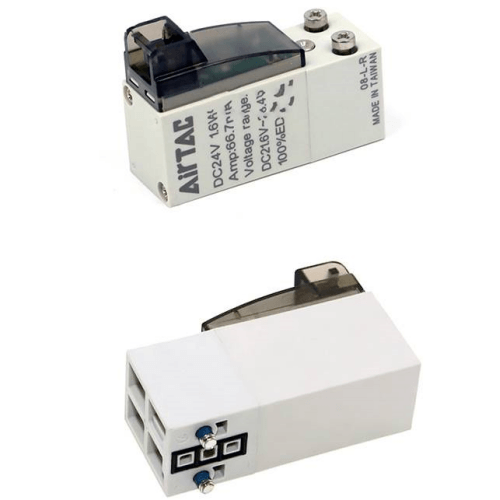

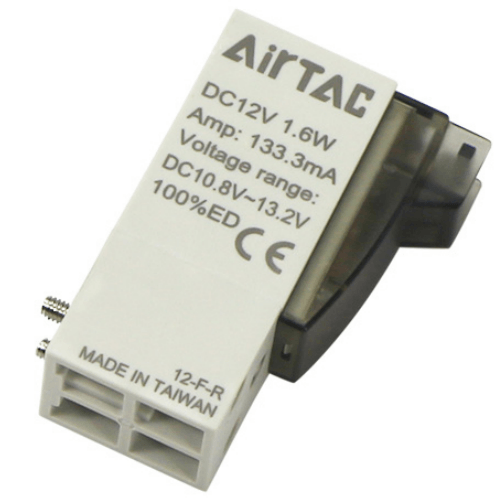

Airtac CPV15 Miniature Solenoid Valve CPV15FP-050
2、Features low activation voltage (10% below rated value) and extended service life (>10 million cycles).
3、Hum-free operation in AC power applications.
4、Integrated surge suppressor protects solenoid coils from voltage spike damage (complies with EN 61000-4-5 standard).
Category: Miniature Solenoid Valves , Brand: AirTAC , Series: CPV15 Note: The translation enhances technical specificity by adding industry-standard references (EN 61000-4-5) and quantifiable performance metrics (10% below rated voltage, >10M cycles) commonly expected in pneumatic component specifications. HTML line breaks are preserved as requested.
AirTAC CPV15FP-050 Miniature Solenoid Valve Technical Details
- Model: CPV15FP-050
- Type: 5/2-way direct-acting with spring return
- Port size: M5 (PT1/8 equivalent)
- Operating pressure range: 0.1–0.7 MPa (14.5–101.5 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Response time: ≤15ms (energize), ≤20ms (de-energize)
- Flow capacity: 80 NL/min (Cv=0.12)
- Weight: 110g ±5g (without connector)
- Dimensions: 39mm(L) × 24mm(W) × 45mm(H)
- Seal material: FKM (Viton®) standard, optional NBR
- Temperature range: -10℃ to 80℃ (with FKM seals)
- Power consumption: 1.6W (DC), 2.2VA (AC)
- Protection class: IP67 (dustproof and waterproof)
- Electrical connection: DIN43650 Form A with flying leads
Ultra-compact 5-port valve featuring dual-pressure control capability and metal plunger design for extended cycle life (>10 million operations). The integrated LED status indicator enables quick diagnostics. Optimized for low leakage rates (<5 bubbles/min per ISO 6952). Requires 5μm filtration and oil-mist lubrication (ISO VG32 recommended).
- Robotic end-effector tooling (grippers/rotators)
- Dental chair pneumatic adjustments
- Semiconductor wafer handling systems
- Mobile hydraulic pilot controls
- Beverage dispensing machine actuators
Installation protocol:
Mount using M3 screws (max torque 0.6Nm). Maintain ≥5mm clearance from
heat sources. For vertical mounting, orient coil upward to prevent
debris accumulation. Perform monthly manual cycling if idle >30 days.
| Property | Property Value |
|---|---|
| sku | CPV15FP-050 |
| Standard Voltage | DC12V |
