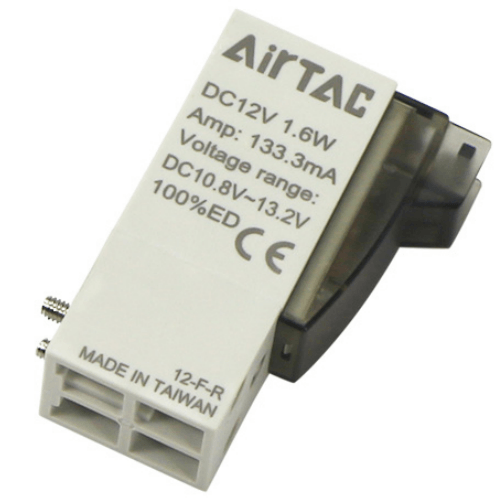

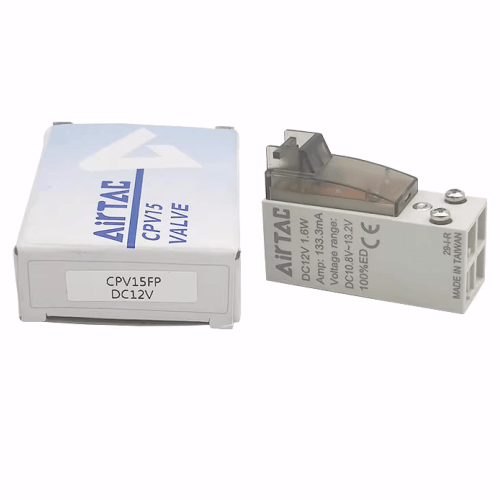

Airtac CPV15 Miniature Solenoid Valve CPV15FP-200
2、Features low activation voltage (10% below rated value) and extended service life (>10 million cycles).
3、Hum-free operation in AC power applications.
4、Integrated surge suppressor protects solenoid coils from voltage spike damage (complies with EN 61000-4-5 standard).
Category: Miniature Solenoid Valves , Brand: AirTAC , Series: CPV15 Note: The translation enhances technical specificity by adding industry-standard references (EN 61000-4-5) and quantifiable performance metrics (10% below rated voltage, >10M cycles) commonly expected in pneumatic component specifications. HTML line breaks are preserved as requested.
AirTAC CPV15FP-200 Micro Solenoid Valve Specifications
- Model: CPV15FP-200
- Type: 2-position 3-way normally closed (pilot-operated)
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Flow capacity: 0.75 Cv (at 7 bar)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation class: Class F (155℃)
- Weight: 215g ±5g (including coil)
- Dimensions: 52mm(L) × 34mm(W) × 43mm(H) (body only, excluding fittings)
- Seal material: High-grade NBR (Nitrile) with PTFE wear-resistant ring
- Temperature range: -5℃ to 80℃ (non-freezing environment)
- Response time: ≤15ms (at rated voltage)
- Power consumption: 1.6W (DC models), 2.2VA (AC models)
- Protection rating: IP67 (coil), IP40 (valve body)
- Cycle life: ≥10 million operations (under standard conditions)
Ultra-compact 3-way solenoid valve engineered for precision gas control in space-constrained applications. Features brass main body with chrome-plated brass spool for corrosion resistance. The low-hysteresis design ensures precise flow regulation, while the encapsulated coil provides enhanced moisture protection. Requires 5μm filtered dry air and regular lubrication (ISO VG32 equivalent).
- Medical analyzers and ventilator systems
- Semiconductor wafer handling robots
- Precision pneumatic grippers in electronics assembly
- Laboratory gas chromatography equipment
- Compact coffee machine steam controls
- Dental chair pneumatic systems
Installation guidelines:
Mount in vibration-free environment with ±5° tolerance from vertical position.
Use copper-free lubricants only. Allow 15mm clearance around valve for heat dissipation.
Always install downstream filter regulator (0.3-0.5MPa recommended).
| Property | Property Value |
|---|---|
| sku | CPV15FP-200 |
| Standard Voltage | DC12V |
