Airtac F-SC-TC Trunnion Bracket F-SC125TC
Brand: AirTAC
Series: F-SC-TC Center Trunnion Bracket

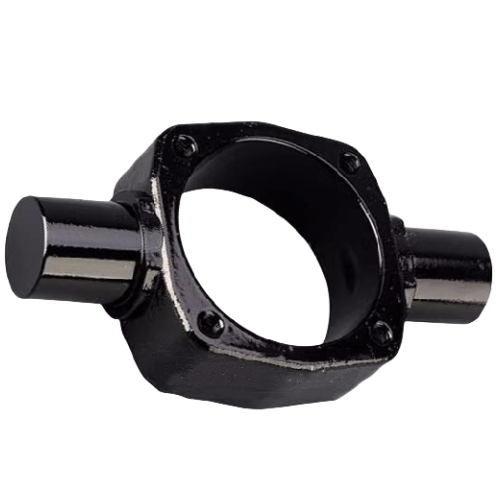

The AirTAC F-SC-TC Series Center Trunnion Bracket is an engineered mounting solution designed for precision alignment and load distribution in pneumatic cylinder applications. Featuring reinforced trunnion geometry with ISO standardized mounting dimensions, this accessory ensures optimal moment resistance during reciprocating motion cycles. The bracket's CNC-machined interface surfaces provide superior parallelism and perpendicularity tolerances, while through-hardened mounting holes maintain dimensional stability under dynamic loading conditions. Compatible with ISO 15552/VDMA 24562 cylinder profiles.
AirTAC F-SC-TC Mid-Eyelet Bracket F-SC125TC Technical Details
- Model: F-SC125TC
- Type: Mid-mount swivel eyelet bracket (heavy-duty)
- Material: Aluminum alloy 6063-T5
- Surface treatment: Hard anodized (25-30μm thickness)
- Mounting hole spacing: 125±0.2mm (center-to-center)
- Bore compatibility: For φ32-63mm cylinders
- Thread specifications: M8×1.25 internal (both ends)
- Max moment load: 35 N·m
- Max radial load: 980 N
- Operating temperature: -20℃ to 120℃
- Weight: 248±5g
- Dimensions: 142mm(L) × 32mm(W) × 24mm(H)
- Mounting torque: 12-15 N·m (M8 screws)
- Rotational angle: ±5° self-aligning capability
Precision-machined pivot bracket designed for high-moment applications in multi-axis pneumatic systems. Features dual ball-bearing supported rotation and hardened contact surfaces (HRC 45-50) for reduced wear. Includes integrated lubrication grooves for long-term maintenance-free operation.
- Robotic arm wrist joint connections
- Rotary table drive mechanisms
- Packaging machine gripper linkages
- Automated welding torch positioning
- Material handling swing arms
Installation protocol:
Apply medium-strength thread locker (LOCTITE 243 recommended) on fasteners.
Verify parallel alignment within 0.1mm/m before final torque application.
Requires periodic inspection every 2,000 operating hours in high-vibration environments.
