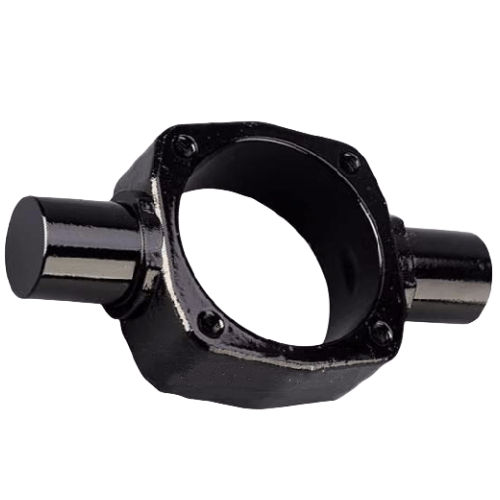

Airtac F-SC-TC Trunnion Bracket F-SC200TC
Brand: AirTAC
Series: F-SC-TC Center Trunnion Bracket
The AirTAC F-SC-TC Series Center Trunnion Bracket is an engineered mounting solution designed for precision alignment and load distribution in pneumatic cylinder applications. Featuring reinforced trunnion geometry with ISO standardized mounting dimensions, this accessory ensures optimal moment resistance during reciprocating motion cycles. The bracket's CNC-machined interface surfaces provide superior parallelism and perpendicularity tolerances, while through-hardened mounting holes maintain dimensional stability under dynamic loading conditions. Compatible with ISO 15552/VDMA 24562 cylinder profiles.
AirTAC F-SC200TC Trunnion Mount Bracket Technical Details
- Model: F-SC-TC series (F-SC200TC variant)
- Material: High-strength aluminum alloy AL6061-T6
- Surface treatment: Anodized (black) with anti-corrosion coating
- Maximum load capacity: 1,200N radial / 800N axial
- Mounting hole spacing: 200mm ±0.1mm (center-to-center)
- Bolt specifications: M10×1.5 mounting threads (4 places)
- Compatible cylinder bore sizes: Ø32mm to Ø100mm
- Operating temperature range: -40℃ to 150℃
- Vibration resistance: 10-2000Hz, 15m/s² max
- Weight: 2.8kg ±3% (with hardware)
- Dimensions: 245mm(L) × 85mm(W) × 48mm(H)
- Parallelism tolerance: ≤0.05mm/m
- Surface hardness: HV 120-150
Precision-engineered trunnion mount for heavy-duty pneumatic cylinder applications. Features dual-bearing support design with hardened steel bushings (HRC 58-62) for reduced wear. Includes stainless steel fasteners (A2-70 grade) and alignment adjustment slots (±2mm). Compatible with ISO 15552 standard cylinders.
- Industrial robotic arm pivot points
- Automated material handling systems
- Packaging machinery linear actuators
- Plastic injection molding ejectors
- Automotive assembly line fixtures
Installation guidelines:
Apply 25-30Nm torque on mounting bolts using cross-tightening sequence.
Lubricate bushings with ISO VG32 hydraulic oil before operation.
Verify cylinder alignment with dial indicator (max 0.1mm runout).
| Property | Property Value |
|---|---|
| sku | F-SC200TC |
